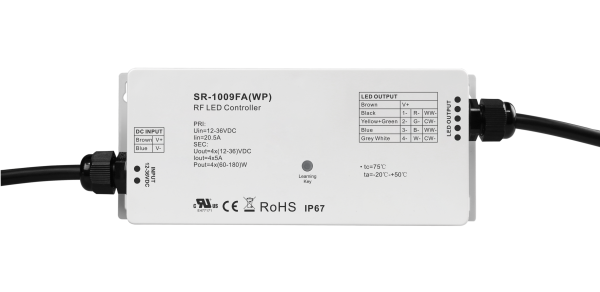

The RF RGBW LED controller SR-1009FAWP series is a waterproof RF receiver with IP67 rating which can be compatible with a variety of remotes to control single color, dual color LEDs and RGBW LEDs with constant current and constant voltage version optional. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of changing colors. While working with WiFi-RF converters, the RF controller can be WiFi controlled by APP installed on IOS or Android mobile devices. The RF LED controller can be used in outdoor and damp environment..
- Waterproof RF LED controller with IP67 rating
- Constant current and constant voltage version available
- Full compatibility with a variety of single color, dual color and RGB/RGBW RF remotes
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Each receiver can be controlled by 8 different remotes maximally
- Can be WiFi controlled by APP installed on IOS or Android moble devices while working with WiFi-RF converter
- Brightness of each R, G, B and W can be adjustable to achieve millions of colors
- Radio frequency available: 869.5/434/916.5MHz
|Part No.||Input Voltage||Output Current||Output Power||Output type||Dimension (mm)|

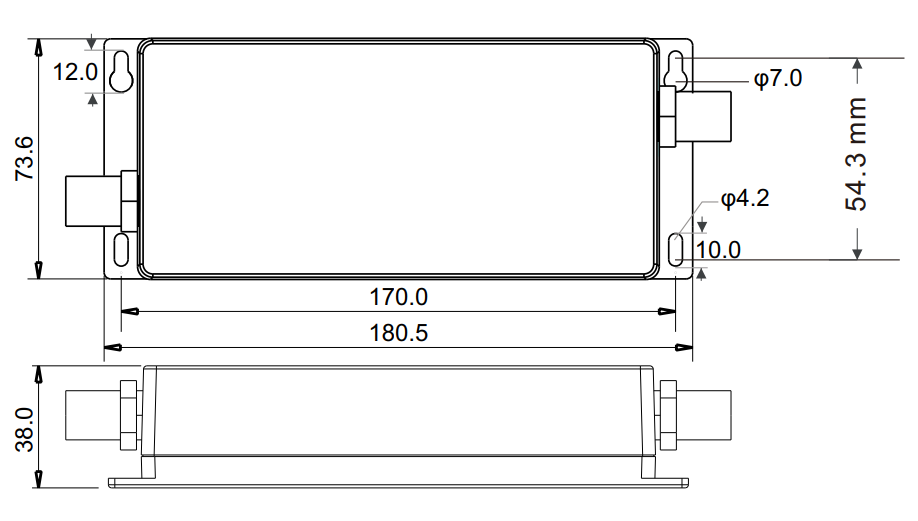

|SR-1009FAWP||12-36VDC||4CH, 5A/CH||240-720W||Constant Voltage||180.5*73.6*38.0|
|SR-1009FA3WP||12-36VDC||4CH, 0.35A/CH||16.8-50.4W||Constant Current||180.5*73.6*38.0|
|SR-1009FA7WP||12-36VDC||4CH, 0.7A/CH||33.6-100.8W||Constant Current||180.5*73.6*38.0|
To know further details of this product, please download the following user manual.
SR-1009FAWP User Manual
