- RF Remote LED Light Dimmer Controller SR-2819SDIM

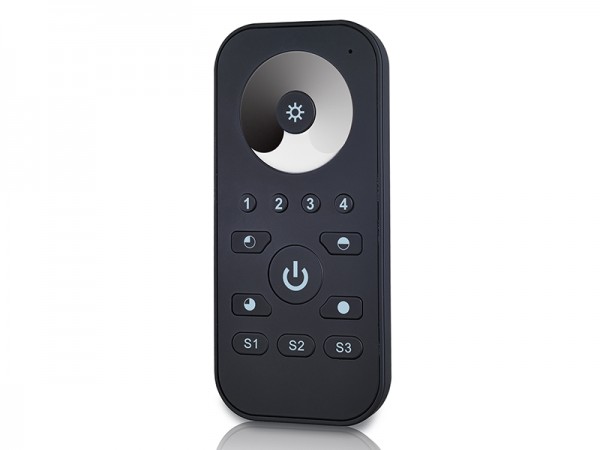

RF LED light dimmer controller SR-2819SDIM is a remote dimmer controller which offers both switch and dimming functions. Designed with a touch color wheel, the dimmer controller offers smooth dimming without any flickering by slide touching the wheel for single color LED lighting. Each LED dimmer can control 4 different zones separately or synchronously with endless receivers in each zone and 3 different scenes can be saved for each zone. 256 level brightness adjustment with dimming range from 0.1% to 100% enables the LED dimmer to achieve millions of colors. 25%, 50%, 75% and 100% brightness can be accessed directly by buttons. Humanized memory function enables the controller to remember the last brightness after turn off or cut off. Compatible with SR-1009 series RF receivers that are available in constant voltage and constant current versions, the remote LED dimmer controller is capable of controlling different types of LED light. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2819SDIM | 4.5VDC | 434MHz/869.5MHz/916.5MHz | 55*120*17 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Product Dimension
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2819SDIM User Manual
