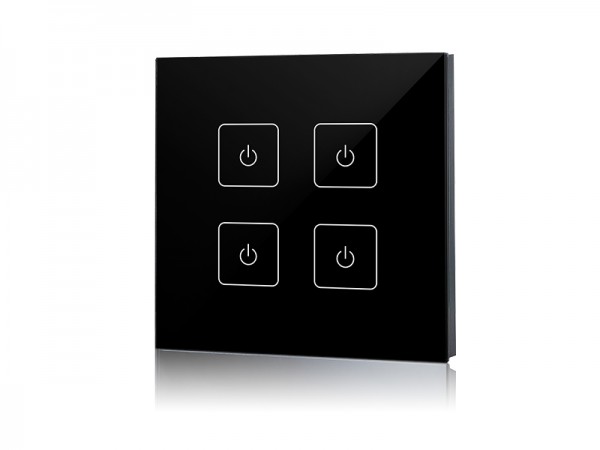

- RF LED Touch Pad Dimmer SR-2833T2
RF LED touch pad dimmer is a full touch LED controller which offers both switch and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, the touch dimmer features smooth dimming and switching functions without any flickering. Each dimmer can control 4 different zones separately with endless receivers in each zone. Smooth dimming range from 0.1%-100% without any flickering can be very comfortable for human eyes. Humanized backlighting function enables the touch pad dimmer to be found even in the dark. Compatible with SR-1009 series RF receivers that are available in both constant voltage and constant current versions, the touch pad dimmer is capable of controlling different types of LED lighting. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2833T2 | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | Touch Sensor |
SR-2833T2(IT) | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 120*80*41 | Touch Sensor |
SR-2833T2(US) | 12-24VDC/100-240VAC | 916.5MHz | 75*120*41 | Touch Sensor |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Installation Diagram
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2833T2 User Manual
SR-2833T2(US) User Manual
SR-2833T2(IT) User Manual
