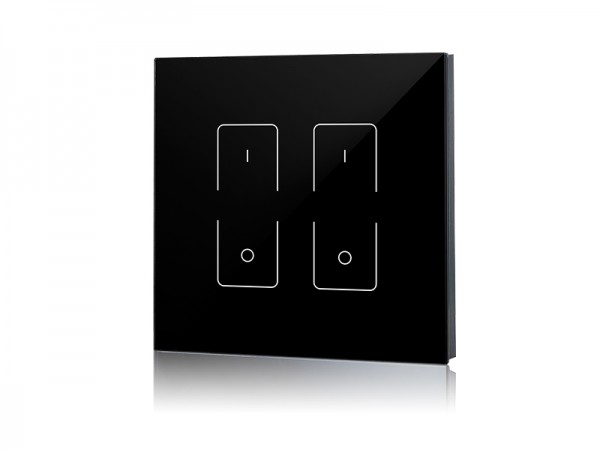

- RF LED Touch Dimmer SR-2833T1
RF touch LED dimmer SR-2833T1 is a full touch LED controller which offers both switch on/off and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, the dimmer controller features smooth dimming and switching functions without any flickering. Each controller can control 2 different zones separately with endless receivers in each zone. Smooth dimming range from 0.1%-100% without any flickering really does good to human eyes. Humanized backlighting function enables the touch dimmer to be found even in the dark. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2833T1 | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | Touch Sensor |
SR-2833T1(IT) | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 120*80*41 | Touch Sensor |
SR-2833T1(US) | 12-24VDC/100-240VAC | 916.5MHz | 75*120*41 | Touch Sensor |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Installation Diagram
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2833T1 User Manual
SR-2833T1(IT) User Manual
SR-2833T1(US) User Manual
