- RF LED Touch Dimmer Switch SR-2830A

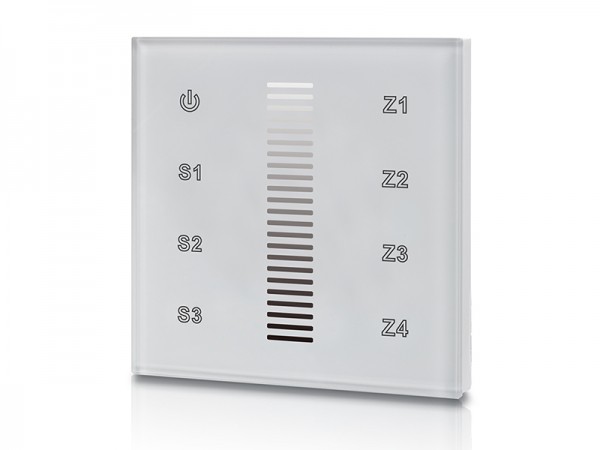

RF LED touch dimmer switch SR-2830A is a full touch LED controller which offers both switch on/off and smooth brightness dimming functions for multiple zones. Adopting high strength ultra sensitive touch glass panel, and designed with touch color line, the touch dimmer switch features accurate smooth dimming and switching functions without any flickering. Each dimmer can control 4 different zones separately or synchronously with endless receivers in each zone, and 3 brightness or scenes can be saved for each zone. 256 level brightness adjustment without any flickering really does good to human eyes. Humanized backlighting function enables the LED dimmer switch to be found even in the dark. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2830A | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | Touch Sensor |
SR-2830A(IT) | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 120*80*41 | Touch Sensor |
SR-2830A(US) | 12-24VDC/100-240VAC | 916.5MHz | 75*120*41 | Touch Sensor |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Installation Diagram
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2830A User Manual
SR-2830A(IT) User Manual
SR-2830A(US) User Manual
