- RF RGB Controller SR-2836RGB
RGB LED controller SR-2836RGB is a LED rotary dimmer switch which offers switch, brightness dimming and color tone adjustment functions as well. The rotary LED dimmer features accurate and smooth color tone adjustment with the rotary knob. Smooth brightness adjustment from 0.1%-100% without flickering can protect human eyes. The rotary controller can control 1 zone with endless receivers. Accurate and smooth RGB color tone adjustment can be achieved by rotating the knob. The controller can be WiFi compatible while the receiver is working with a WiFi-RF converter and can be controlled by APP installed on IOS and Android systems. European, Italian/Australian and US wall mounted sizes are available.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2836RGB | 3VDC | 434MHz/869.5MHz | 86*86*41 | RF Wireless |
SR-2836RGB(IT) | 3VDC | 434MHz/869.5MHz | 120*80*41 | RF Wireless |
SR-2836RGB(US) | 3VDC | 916.5MHz | 75*120*41 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*20 |
Installation Diagram

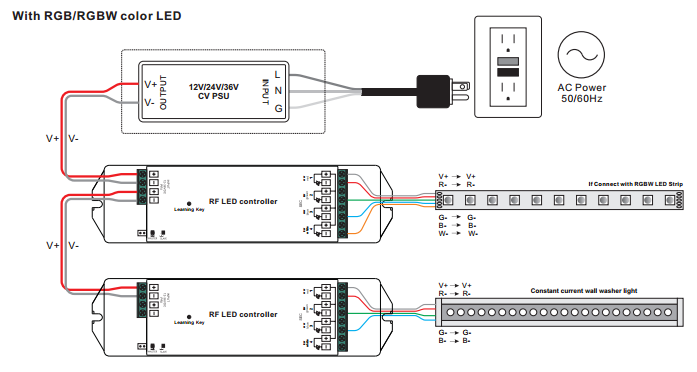

Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2836RGB User Manual
SR-2836RGB(US) User Manual
SR-2836RGB(IT) User Manual
