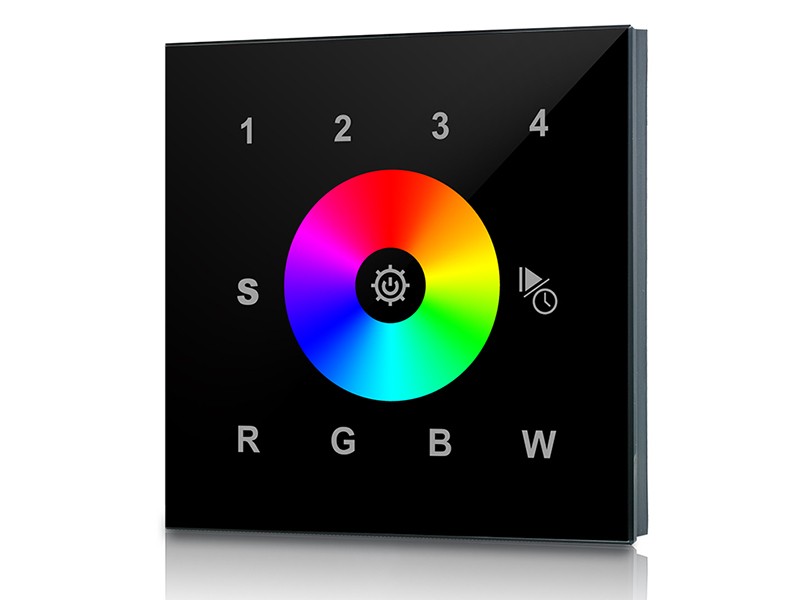

- RF RGBW Wall Mounted LED Touch Controller SR-2820
SR-2820 is a RGB touch controller which adopts ultra sensitive full touch glass touch panel with touch color wheel to offer accurate and fast color tone adjustment. The touch panel controller is designed with sleek appearance and user-friendly interface for easy operation. Each controller can control up to 4 zones synchronously or independently with endless receivers in each zone. Built-in 10 dynamic changing patterns are available with pause function when played. Each zone can save 4 scenes if you do not like the built-in ones. Independent dimming function of each R, G, B, W channel enables the RGB controller to create millions of colors.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2820 | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | Touch Sensor |
SR-2820(IT) | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 120*80*41 | Touch Sensor |
SR-2820(US) | 12-24VDC/100-240VAC | 916.5MHz | 75*120*41 | Touch Sensor |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Installation for SR-2820
Installation for SR-2820IT
Installation for SR-2820US
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2820 User Manual
SR-2820IT User Manual
SR-2820US3 User Manual
