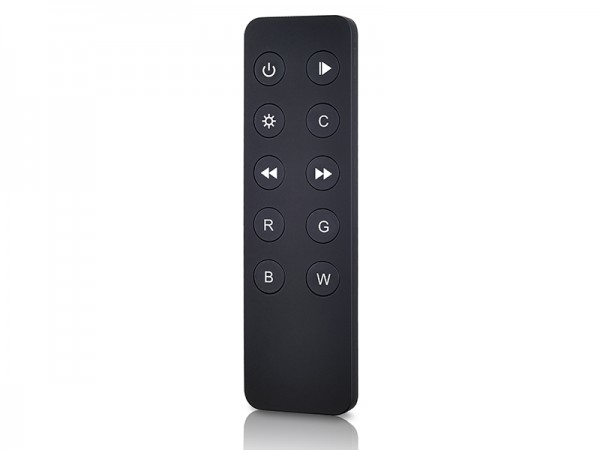

- RF RGBW LED Remote Controller SR-2839WK
RF RGBW LED remote controller SR-2839WK is a RGBW wireless controller which offers fast and accurate color tone adjustment and independent brightness dimming of each R, G, B, W channel. Each RGB controller can control 1 zone with endless receivers in each zone. Independent dimming of each R, G, B, W channel enables the RGB LED remote to achieve millions of colors. 10 built-in changing patterns are available with 8 level adjustable changing speed. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2839WK | 3VDC | 434MHz/868MHz | 40*136.5*11.5 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 46*178*18 |
Product Dimension

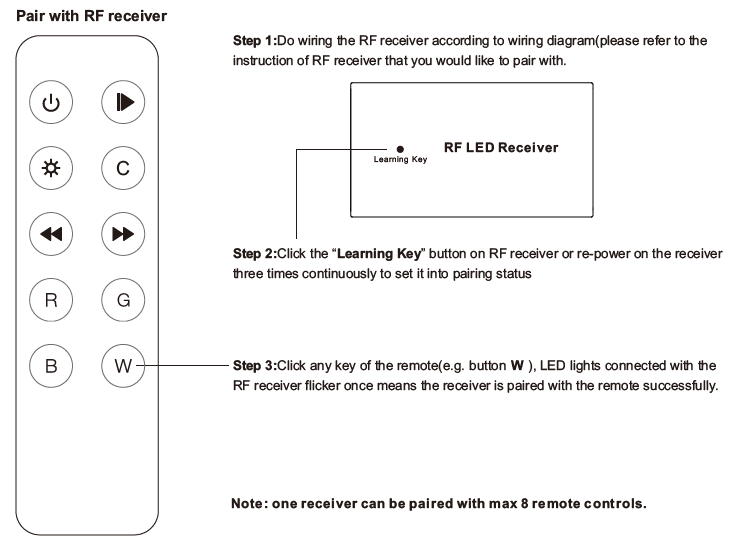

Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2839WK User Manual
