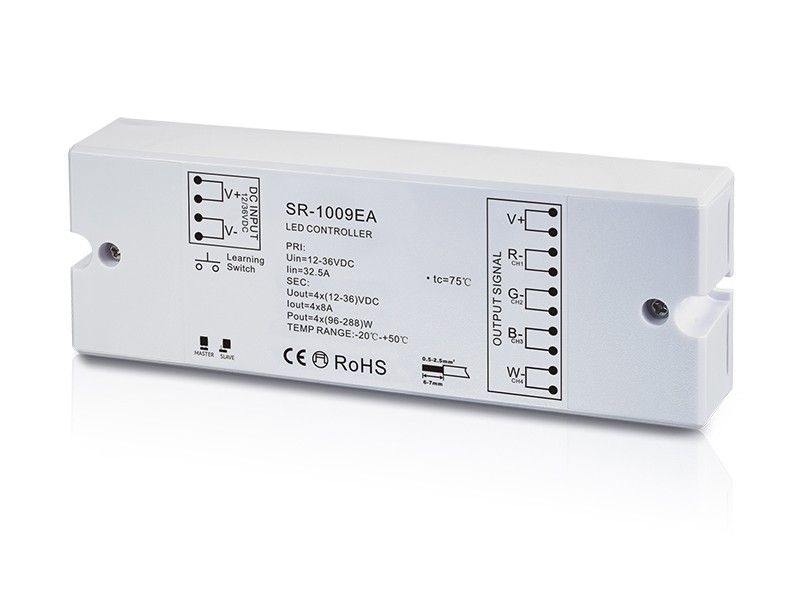

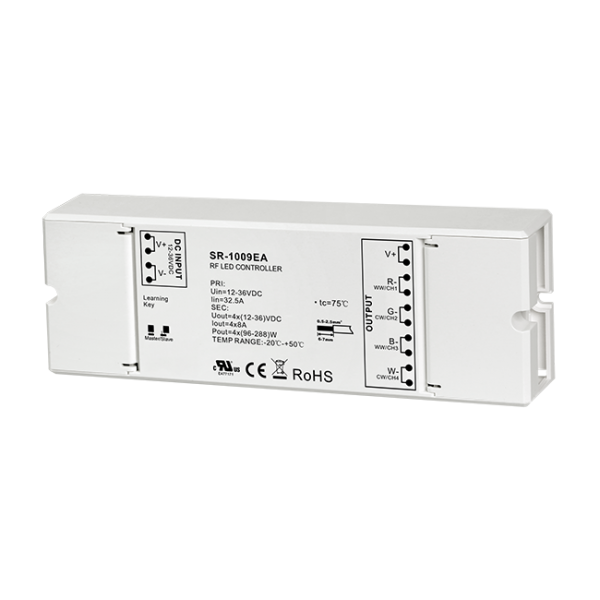

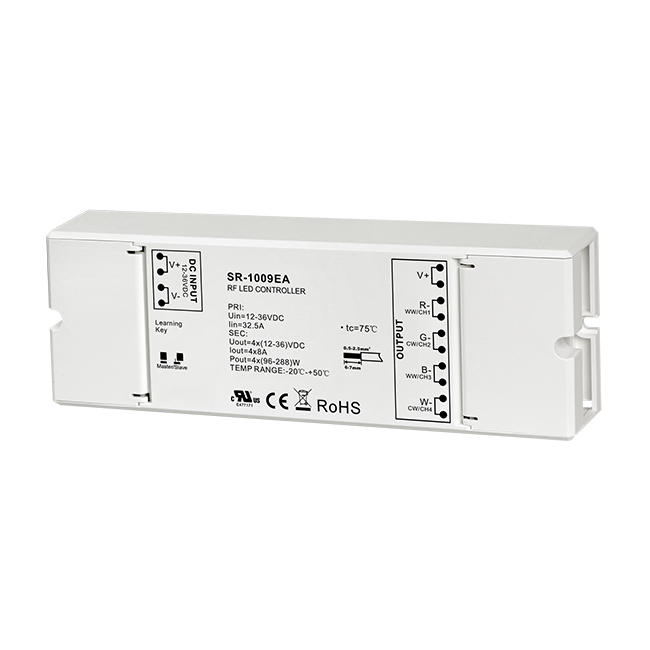

The RF LED dimmer SR-1009EA is an 8A 4CH constant voltage LED controller available in 12V, 24V and 36V, which can be compatible with a variety of remotes to control single color, dual color and RGBW LED lighting. The LED dimmer is designed to control the 12VDC low voltage LED strip lights and offer not only smooth brightness dimming function but also accurate RGB color tone adjustment. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of changing colors. While working with WiFi-RF converters, the LED dimmer can be WiFi controlled by APP installed on IOS or Android mobile devices. Waterproof version is available with IP67 rating. The constant voltage LED dimmer combining the 12V LED strip will be the perfect solution for home decoration lighting to create the right mood and ambient by freely adjusting brightness and colors.
- 8A 4CH 12-36V constant voltage rf receiver
- Full compatibility with a variety of single color, dual color and RGB/RGBW RF remotes
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Each receiver can be controlled by 8 different remotes maximally
- Can be WiFi controlled by APP installed on IOS or Android moble devices while working with WiFi-RF converter
- Brightness of each R, G, B and W can be adjustable to achieve millions of colors
- Radio frequency available: 869.5/434/916.5MHz
|Part No.||Input Voltage||Output Current||Output Power||Output type||Dimension (mm)|

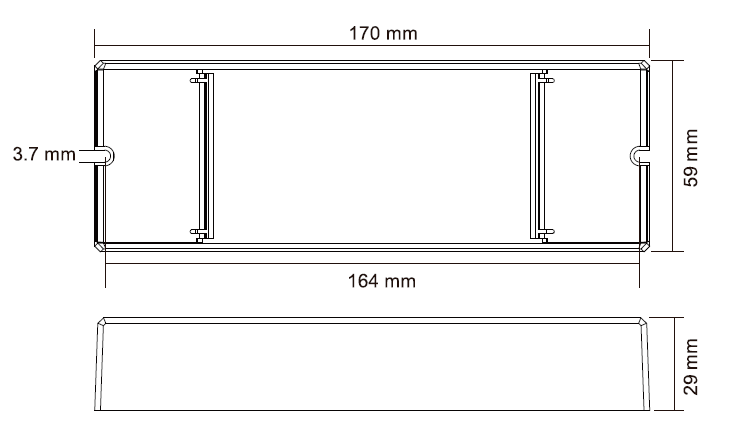

|SR-1009EA||12-36VDC||4CH, 8A/CH||384-1152W||Constant Voltage||58*168*28|
To know further details of this product, please download the following user manual.
SR-1009EA User Manual
