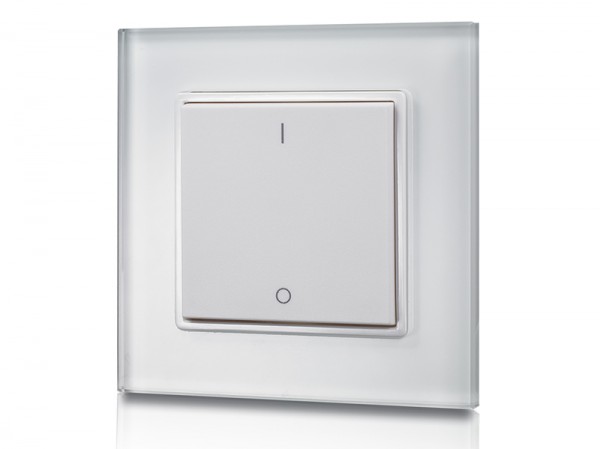

- RF LED Push Button Dimmer Switch SR-2833K1/K2
RF LED push button dimmer switch SR-2833K1/K2 is a push button dimmer switch which offers both switching and brightness adjustment functions for single color LED lights. The dimmer switch features smooth and accurate dimming from 0.1%-100% without any flickering. Each controller can control 1 zone or 2 zones with endless receivers in each zone and control distance can be over 20 meters. It is easy to install or uninstall the push dimmer with free sticker on the back. The controller can be WiFi controlled via APP installed on IOS and Android systems while receivers are working with the WiFi-RF converter.
Key Features
Part No. | Operation Voltage | Output | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|---|
SR-2833K1 | 4.5VDC | RF Signal | 434MHz/869.5MHz | 86*86*13 | 1 zone |
SR-2833K2 | 4.5VDC | RF Signal | 434MHz/869.5MHz | 86*86*13 | 2 zones |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Installation Diagram
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2833K1 User Manual
SR-2833K2 User Manual
