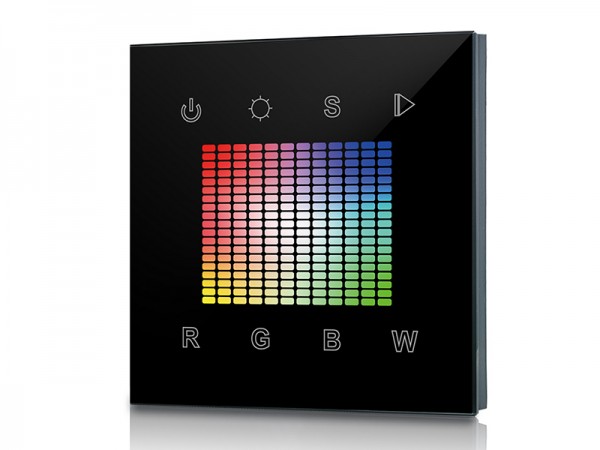

- RF Touch RGB LED Controller SR-2831S
The SR-2831S is a full touch RF RGB LED controller which adopts ultra sensitive high strength glass panel with color panel to offer accurate and fast color tone adjustment. The LED controller is designed with sleek appearance and user-friendly interface with back lighting for brightness adjustment of each independent channel, RGB color adjustment and dynamic changing patterns. Innovative large area touch color panel enables users to choose the desired RGB colors accurately and easily. Each controller can control up to 2 zones synchronously or independently with endless receivers in each zone. Independent 256 level brightness adjustment of each R, G, B, W channel enables the RGB controller to create millions of colors with the LED lights. Designed with memory function, the RGB touch controller can remember the last brightness after turn off or cut off. While working with a WiFi to RF converter, the receiver of this RF LED controller can be WiFi controlled after installing APP on IOS and Android mobile devices.
This RF controller is compatible with SR-1009 series receivers that are available with both constant voltage and constant current versions for different types of LED lighting. Its receivers are compatible with WiFi to RF converters which enable WiFi control via APP installed on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2831S | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | One zone, save 1 color/scene |
SR-2831S-Z1 | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | One zone, save 2 colors/scenes |
SR-2831S-Z2 | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | Two zones, save 1 color/scene |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*20 |
Installation Diagram
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2832 User Manual
