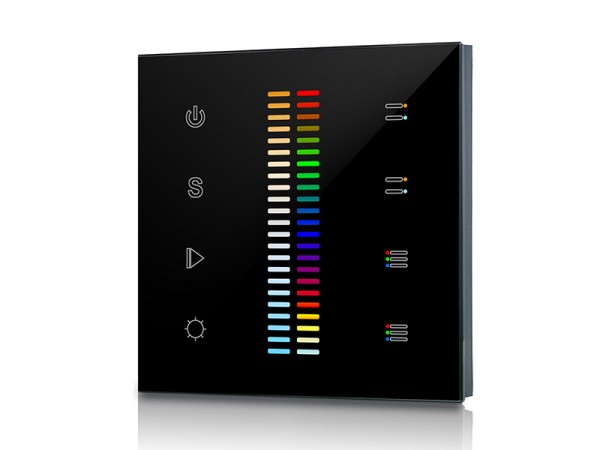

The SR-2830C is a touch pad controller which adopts ultra sensitive high strength glass panel with color line to offer accurate and fast color tone and color temperature adjustment. The RGB touch controller is designed with sleek appearance and user-friendly interface with backlighting for easy operation. Each controller can control up to 4 zones synchronously or independently with endless receivers in each zone. Independent 256 level brightness adjustment of each R, G, B, W channel enables the RGB controller to create millions of colors. Designed with memory function, the touch controller can remember the last brightness after turn off or cut off. The touch controller can be WiFi controlled after installing APP on IOS and Android mobile devices.
Key Features
- High strength and ultra sensitive touch glass panel with backlighting
- Touch color line for accurate color tone adjustment or color temperature adjustment
- Control 4 zones separately or synchronously
- Save 3 colors/scenes you like for each zone
- Memory function to remember the last brightness after turn off or cut off
- 256 level brightness adjustment fo each R, G, B channel
- Remote control with 20 meters control distance
- To work with power repeater to expand output unlimitedly
- Each zone can be set endless receivers
- Each receiver maximally can be controlled by 8 different remote controllers
- Both DC and AC input versions are available.
- Italian/Australia, American size optional
- Receivers can work with WiFi-RF converter after installing software on IOS and Android system
Remote
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
SR-2830C | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | RF Wireless |
SR-2830C (IT) | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 120*80*41 | RF Wireless |
SR-2830C (US) | 12-24VDC/100-240VAC | 916.5MHz | 75*120*41 | RF Wireless |
Compatible Receiver
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 58*168*28 |
Installation Diagram for SR-2830C
Installation Diagram for SR-2830C-US
Installation Diagram for SR-2830C-IT
Receiver Wiring Diagram
