- RF Full Touch Remote RGB LED Controller SR-2831

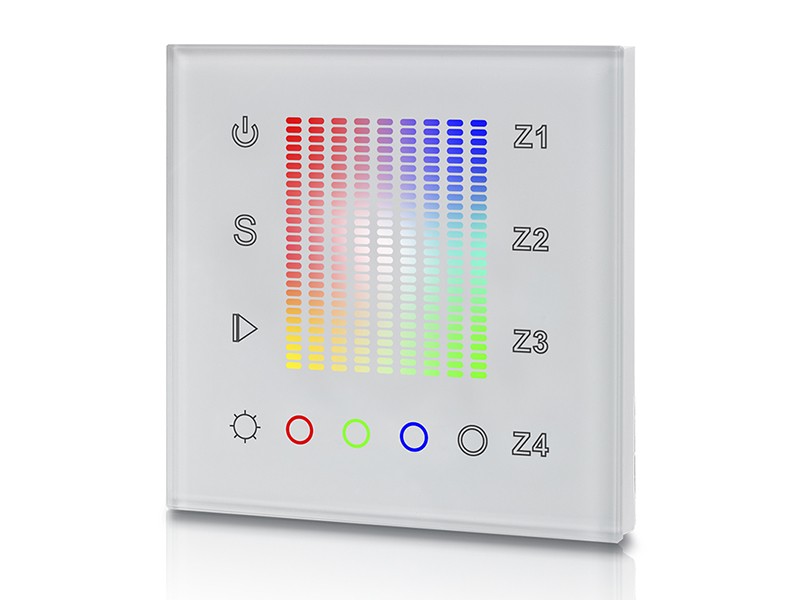

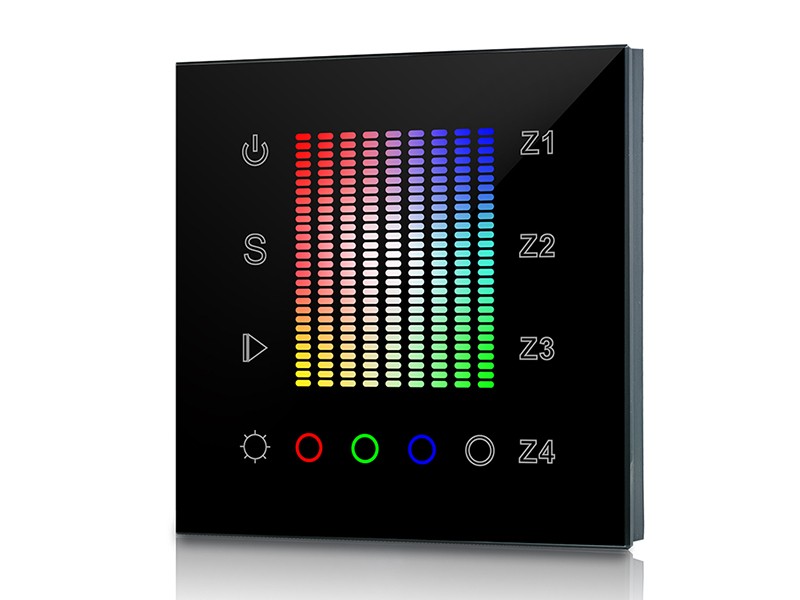

The SR-2831 is a full touch RGB LED controller with RF signal output and adopts ultra sensitive high strength glass panel with color panel to offer accurate and fast color tone adjustment. The RGB LED controller is designed with sleek appearance and user-friendly interface with backlighting for easy operation. Each controller can control up to 4 zones synchronously or independently with endless receivers in each zone. Independent 256 level brightness adjustment of each R, G, B channel enables the RGB controller to create millions of colors. Designed with memory function, the WiFi RGB controller can remember the last brightness after turn off or cut off. The LED controller can be WiFi controlled after installing APP on IOS and Android mobile devices.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2831 | 12-24VDC/100-240VAC | 434MHz/869.5MHz | 86*86*41 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 46*178*18 |

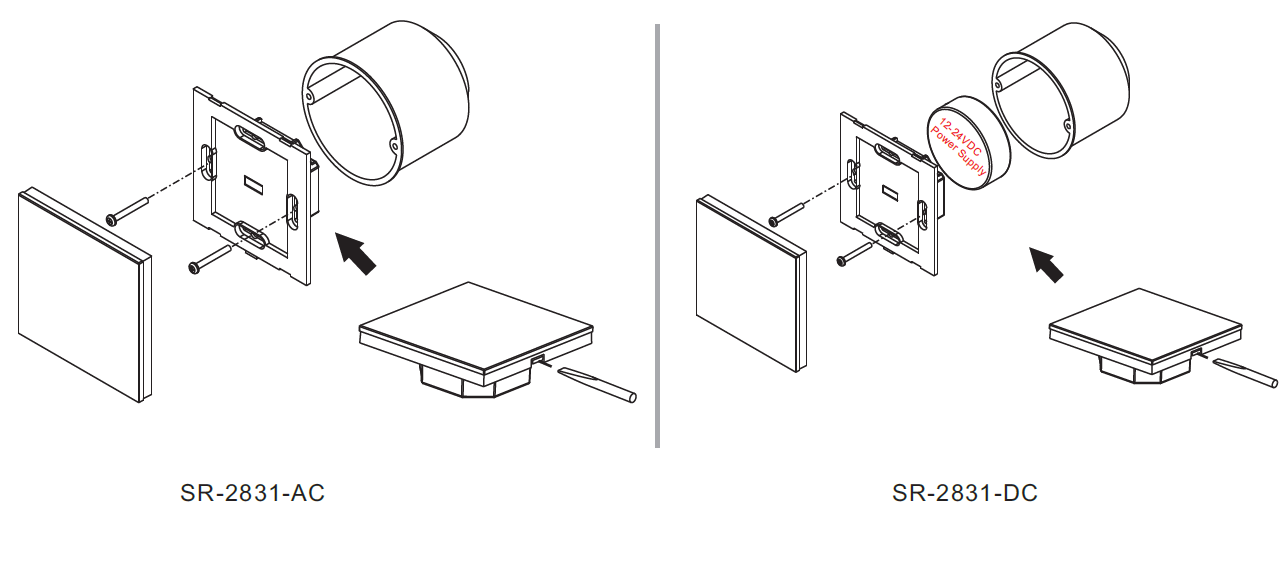

Installation Diagram

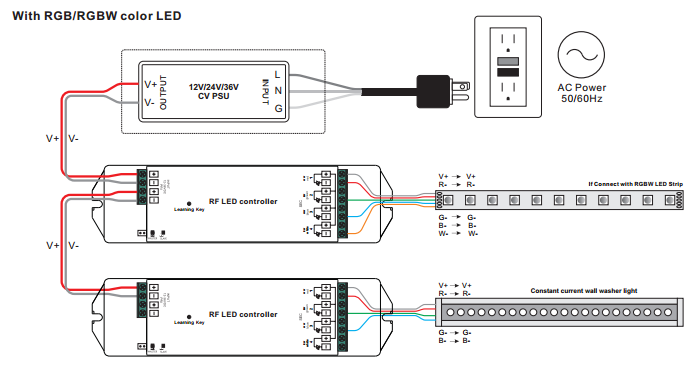

Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2831 User Manual
