- RGBW RF LED Controller SR-2819

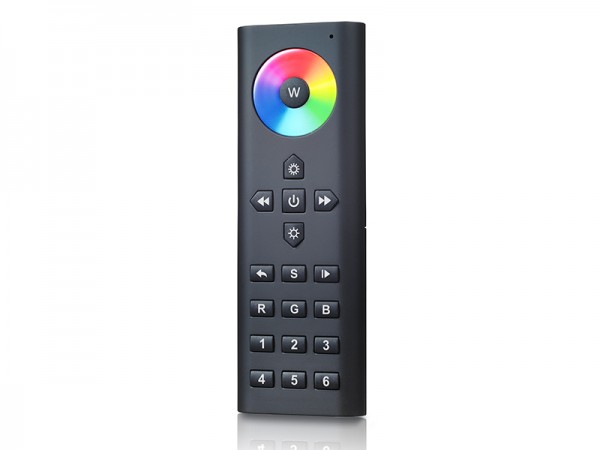

The RGBW RF LED controller SR-2819 is a remote controller designed with ultra sensitive glass touch color wheel to adjust color tone fast and accurately and independent dimming function of each R, G, B, W channel. Each controller can control up to 6 zones separately or synchronously with endless receivers in each zone. There are 10 built-in changing patterns with pause function when played. Scene saving function is available when you do not like the built-in ones, and 6 scenes can be saved for each zone. Independent brightness adjustment of each R, G, B, W channel enables the RGB WiFi LED controller to achieve millions of colors. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2819 | 4.5VDC | 434MHz/869.5MHz/916.5MHz | 48*140*16 | RF Signal |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 46*178*18 |
Product Dimension

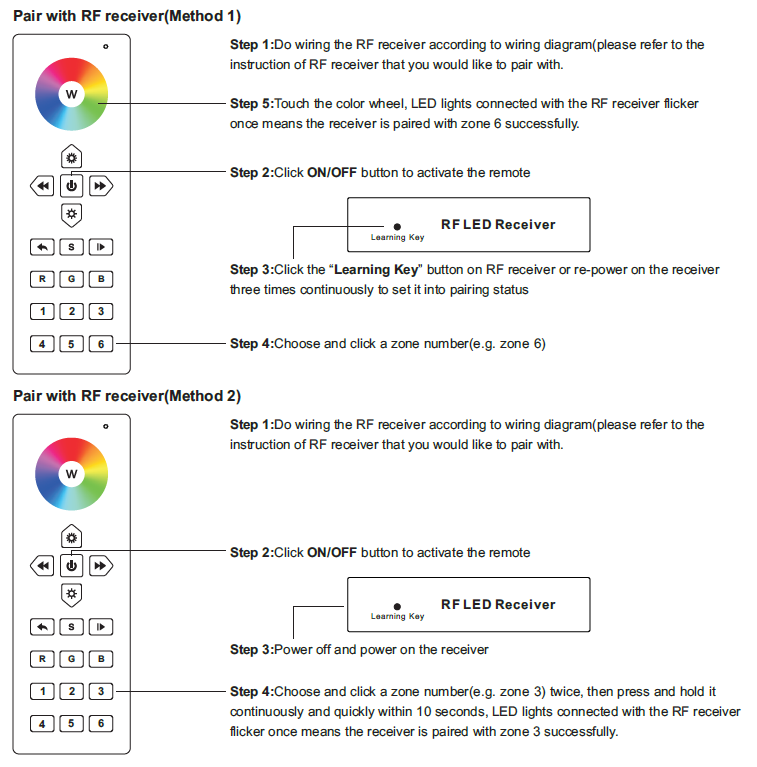

Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2819 User Manual
