- RF LED RGBW Controller SR-2819T8

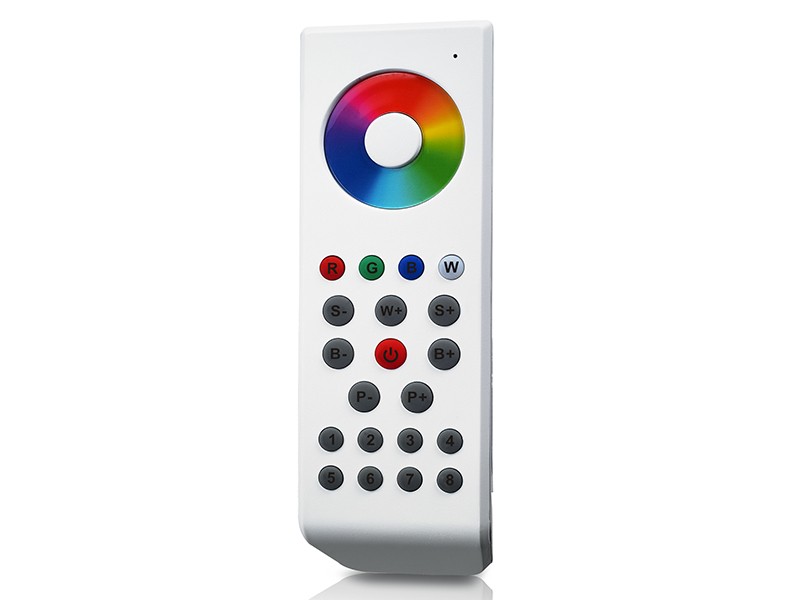

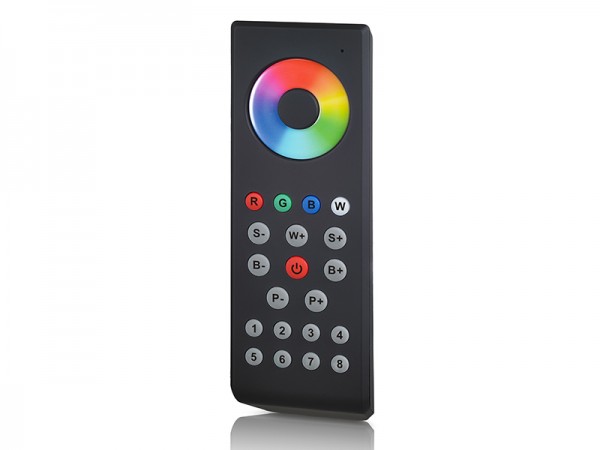

RF LED controller SR-2819T8 is a RGBW controller with unique design touch color wheel which offers ultra sensitive touch control to adjust color tone fast and accurately. Each RGBW controller can control 8 zones separately or synchronously with endless receivers in each zone. Independent dimming of each R, G, B, W channel enables the wireless remote to achieve millions of colors. 10 built-in changing patterns are available with 8 level adjustable changing speed. While receivers are working with WiFi-RF converter, they can be controlled by WiFi via installing APP on IOS and Android systems.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2819T8 | 4.5VDC | 434MHz/869.5MHz/916.5MHz | 43.8*131.6*24.5 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-1009FA7 | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Current | 46*178*18 |

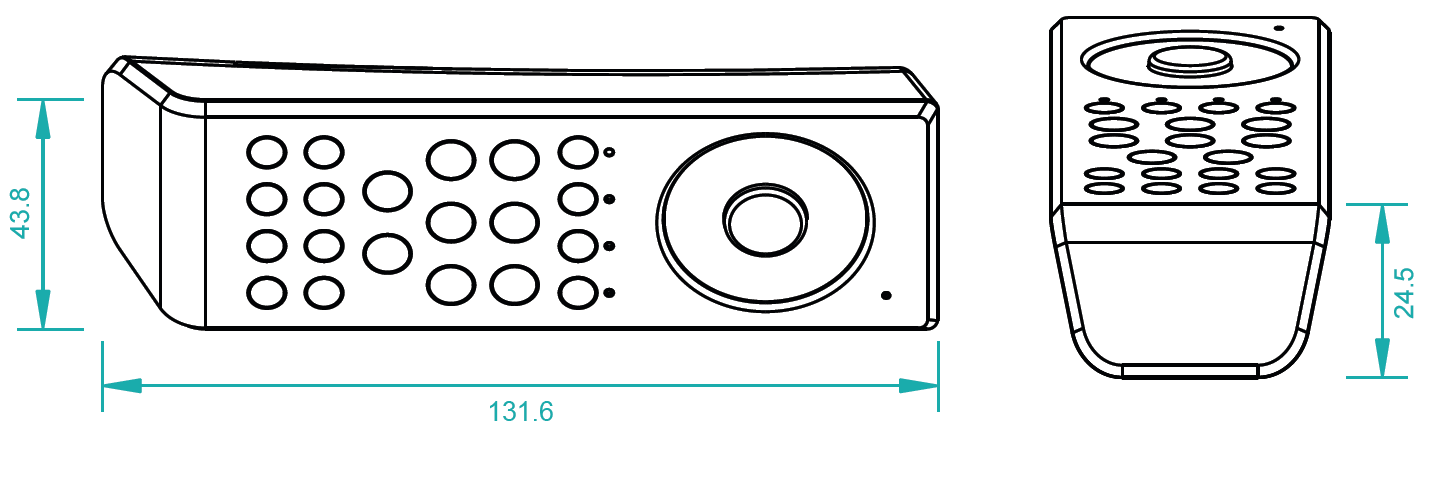

Product Dimension

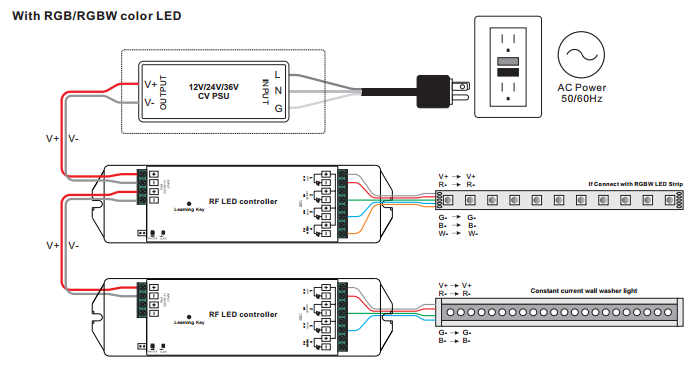

Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2819T8 User Manual
