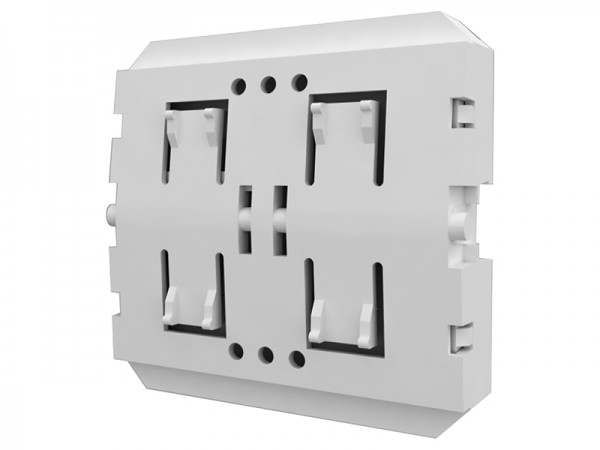

SR-2833P is a RF converter module which converts the push switch to be a RF remote dimmer switch after wiring correctly with the push button and pairing successfully with SR-1009 series receivers. Just connect the RF module with the push button switch, and pair the switch with the receiver, then the switch will become a dimmer switch which offers both switch and brightness adjustment functions.
Key Features
- RF convertor module
- Converts push switch to RF remote dimmer switch
- Compatible with SR-1009 series receivers
- Offers both switch and brightness adjustment functions
- Smooth dimming without any flickering
Remote
| Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
|---|
| SR-2833P | 3VDC CR2430 battery | 434MHz/869.5MHz | 40*40*11.2 | RF Wireless |
|---|
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|
| SR-1009FA | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
|---|
| SR-1009FA3 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
|---|
| SR-1009FA7 | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
|---|
| SR-1009EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
|---|
SR-2833P Wiring Diagram with Push Switch
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2833P User Manual
