- RF Naked Remote SR-2805NF

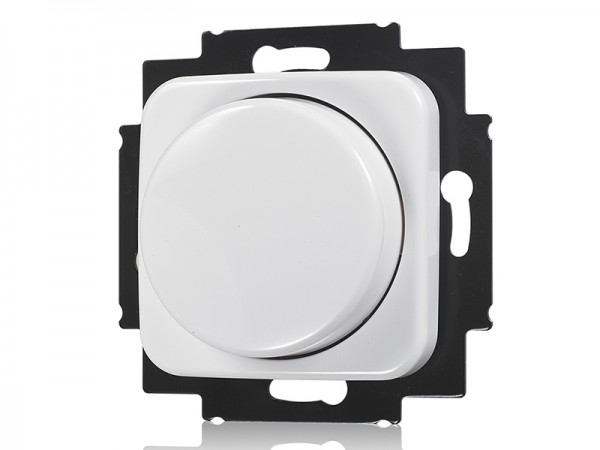

RF naked remote SR-2805NF is a rotary dimmer switch which offers both switch and brightness adjustment functions for single color LEDs. This rotary dimmer can control 1 zone with endless receivers and features smooth and accurate dimming from 0.1%-100% without any flickering. With a control distance of over 20 meters, you can control the LED lights easily and conveniently even if you're far away from them. This naked remote can be compatible with most wall mounted frames in the market.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2805NF | 3VDC | 434MHz/868MHz | 86*86*41 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2805NF User Manual
