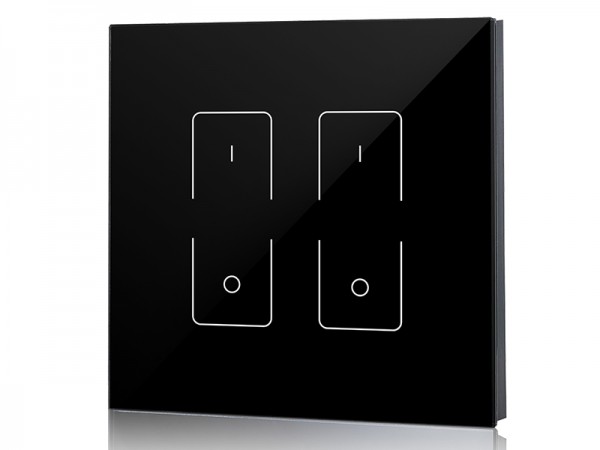

- RF Single Color LED Touch Dimmer SR-2805T1
RF single color LED touch dimmer SR-2805T1 is a full touch pad dimmer controller which can control 2 zones separately with switch and dimming functions. Thanks to the ultra sensitive high strength tempered glass touch panel, the LED dimmer features smooth and accurate brightness adjustment by touching, easy-to-use interface and smooth dimming without flickering from 0.1% to 100%. Humanized back lighting design can facilitate operation in the dark. European size, Italian/Australian and US wall mounted size are available. The wall mounted RF dimmer controller is compatible with single color easy RF receivers that are available in both constant voltage and constant current versions to control different types of LED lightings.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2805T1 | 12-24VDC/100-240VAC | 434MHz/868MHz | 86*86*41 | Touch Sensor |
SR-2805T1(IT) | 12-24VDC/100-240VAC | 434MHz/868MHz | 120*80*41 | Touch Sensor |
SR-2805T1(US) | 12-24VDC/100-240VAC | 434MHz/868MHz | 75*120*41 | Touch Sensor |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |

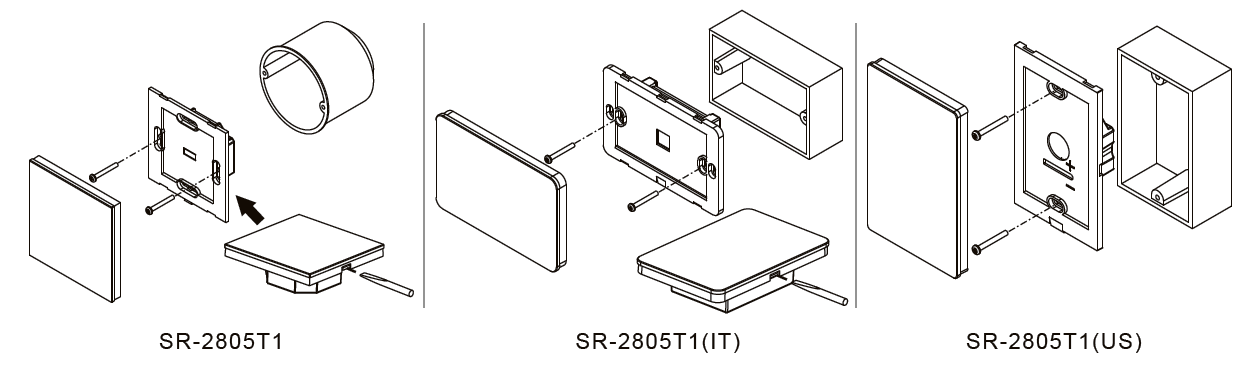

Installation
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2805T1 User Manual
SR-2805T1(US) User Manual
SR-2805T1(IT) User Manual
