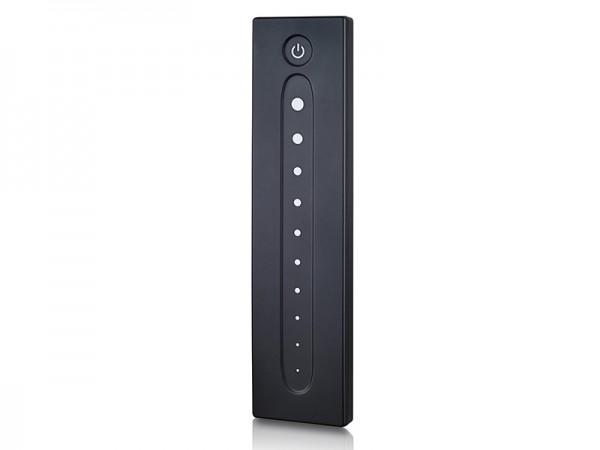

- Easy RF Touch LED Dimmer SR-2828
SR-2828 is an easy-to-use RF touch led dimmer which controls 1 zone with dimming range from 0.1%-100%. The remote led dimmer features ultra sensitive touch control, smooth dimming without any flickering and a control distance of over 20 meters. The touch slider with 256 level logarithmic dimming enables the dimmer to adjust brightness smoothly without any flickering which can be very comfortable for human eyes. Each dimmer can control one zone with endless receivers in each zone. The easy RF touch LED dimmer is compatible with single color easy RF receivers that are available in both constant voltage and constant current version to control different types of LED lighting.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2828 | 3.6VDC | 434MHz/868MHz | 35*141*8.5 | Battery CR2025 |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |
Product Dimension
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2828 User Manual
