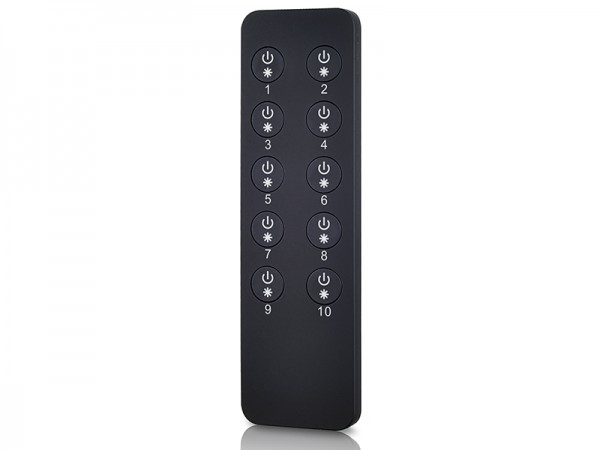

- Easy RF LED Controller SR-2802 256 levels logarithmic dimming
The easy RF LED controller SR-2802 with 256 levels logarithmic dimming is a multiple zone LED controller which can control 10 zones separately with switch and dimming function. Via logarithmic dimming, the remote controller can dim your LED lights from 0.1% to 100% smoothly without any flickering. Push button control can be available while connected with receivers.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2802 | 3VDC | 434MHz/868MHz | 39*136.5*10.7 | Battery CR2025 |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |
Product Dimension
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2802 User Manual
