- RF Single Color Touch Dimmer SR-2805T2

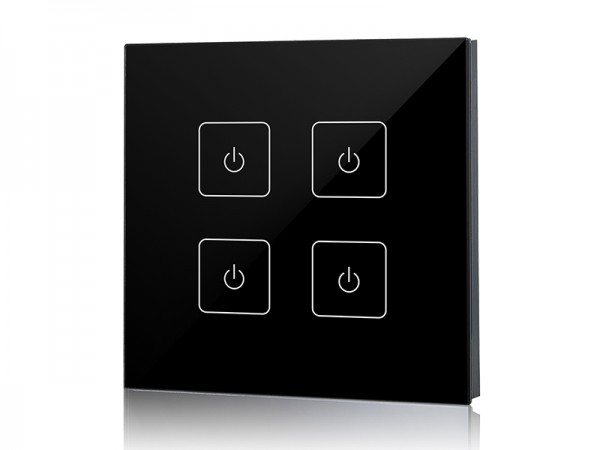

RF single color touch dimmer SR-2805T2 is a full touch pad controller which can control 4 zones separately with switch and dimming functions. The touch dimmer features ultra sensitive touch control, easy-to-use interface and smooth dimming without flickering from 0.1% to 100%. Humanized back lighting design can facilitate operation in the dark. European size, Italian/Australian and US wall mounted size are available.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2805T2 | 12-24VDC/100-240VAC | 434MHz/868MHz | 86*86*41 | Touch Sensor |
SR-2805T2(IT) | 12-24VDC/100-240VAC | 434MHz/868MHz | 120*80*41 | Touch Sensor |
SR-2805T2(US) | 12-24VDC/100-240VAC | 434MHz/868MHz | 75*120*41 | Touch Sensor |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |
Installation
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2805T2 User Manual
SR-2805T2(US) User Manual
SR-2833T2(IT) User Manual
