- RF LED Rotary Dimmer SR-2805R

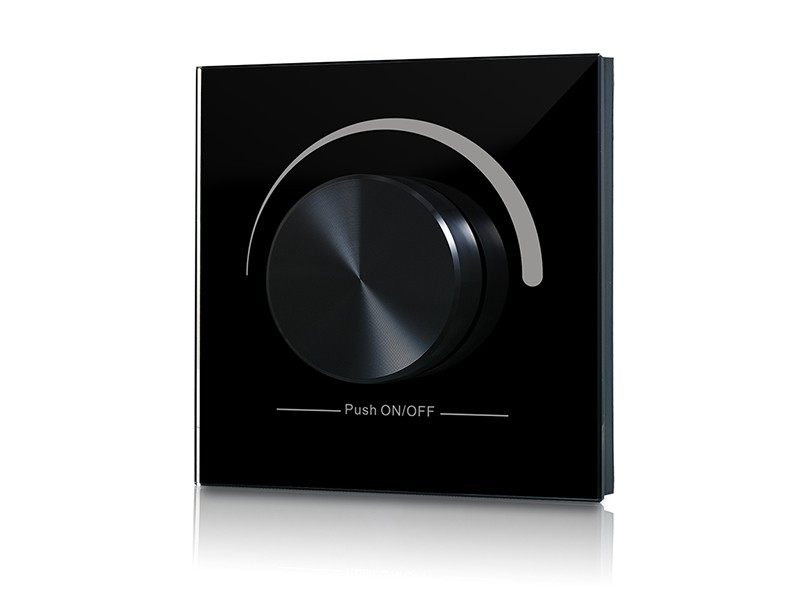

RF rotary dimmer SR-2805R is remote dimmer controller with rotary knob to switch and dim single color LED lighting. Designed with high strength tempered glass material, the rotary dimmer features sooth dimming without any flickering from 0.1% to 100%. Each dimmer can control 1 zone with endless receivers. It is easy to adjust brightness by rotating the knob and switch on/off by clicking the rotary knob. European size, Italian/Australian, US wall mounted sizes are available for different standards. The imported built-in battery will power the RF dimmer controller for up to 5 years without having to replace battery frequently. Compatible with single color easy RF receivers that are available in both constant voltage and constant current versions, the rotary dimmer can control different types of LED lights.
Key Features
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
---|---|---|---|---|
SR-2805R | 3VDC | 434MHz/868MHz | 86*86*41 | RF Wireless |
SR-2805R(IT) | 3VDC | 434MHz/868MHz | 120*80*41 | RF Wireless |
SR-2805R(US) | 3VDC | 434MHz/868MHz | 75*120*41 | RF Wireless |
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |
Installation for SR-2805R
Installation for SR-2805R(US)
Installation for SR-2805R(IT)
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2805R User Manual
SR-2836R(US) User Manual
SR-2805R(IT) User Manual
