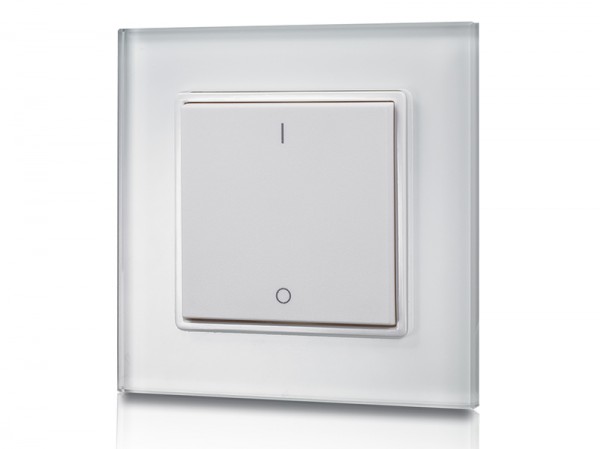

RF ED dimmer SR-2801K1/K2 is a push button dimmer switch which offers both switch and brightness adjustment functions for single color LED lights. The LED dimmer features smooth and accurate dimming from 0.1%-100% without any flickering. It can control 1 zone or 2 zones with endless receivers in each zone and control distance can be over 20 meters. It is easy to install or uninstall the push dimmer with free sticker on the back.
Key Features
- Single color RF Dimmer Reliable & stable switch and dimming control function, control range>20M.
- Battery in the remote is with long life span. It normally can use for 5 years.
- Switch on/off of lightings slowly, without any flash, meet the comfort of human eyes.
- Dimming range 0.1-100%.
- Use with power repeater to expand the output power unlimitedly.
- Enable to control one or two zones separately, each zone can be set endless receivers, each receiver maximally be controlled by 8 different senders.
- One button dim and switch on/off all zones.
- With free stickers on the back easy to be installed and uninstalled.
Remote
Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
SR-2801K1 | 4.5VDC | 434MHz/868MHz | 86*86*13 | RF Wireless |
SR-2801K2 | 4.5VDC | 434MHz/868MHz | 86*86*13 | RF Wireless |
Compatible Receiver
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |
Installation for SR-2801K1
Installation for SR-2801K2
Receiver Wiring Diagram
