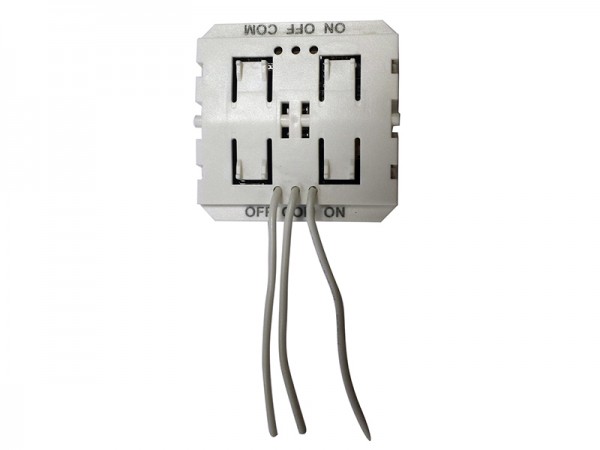

SR-2801P is a RF converter module which converts the push switch to be a RF remote dimmer switch while working with single color easy RF receivers. Just connect the RF module with the push button switch, and pair the switch with the receiver, then the switch will become a dimmer switch which offers brightness adjustment function.
Key Features
- RF convertor module
- Coverts push button to RF remote dimmer switch
- Compatible with single color easy RF receivers
- Both switching ON/OFF and brightness adjustment functions
- Smooth dimming without any flickering
Remote
| Part No. | Operation Voltage | Operation Frequency | Dimension (mm) | Remarks |
|---|
| SR-2801P | 3VDC CR2430 battery | 434MHz/868MHz | 40*40*13 | RF Wireless |
|---|
Compatible Receiver
| Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
|---|
| SR-2501N | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 46*178*18 |
|---|
| SR-2501NEA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |
|---|
| SR-2502N | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 46*178*18 |
|---|
| SR-2503N | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 46*178*18 |
|---|
| SR-2501NS | 12-36VDC | 1CH, 8A/CH | 96-288W | Constant Voltage | 33*82*20 |
|---|
SR-2801P Wiring Diagram with Push Button
Receiver Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2801P User Manual
