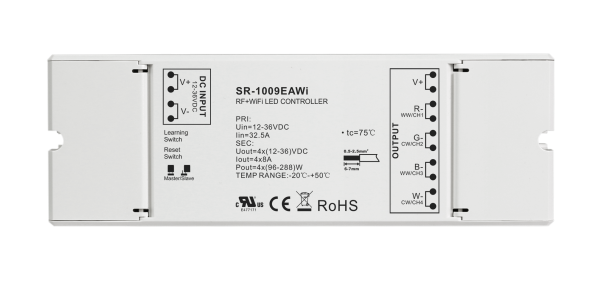

The RGBW LED controller SR-1009EAWi is a 12-36VDC constant voltage RF and WiFi controller with 4 channel output and 8a per channel, which can be compatible with a variety of RF remotes and APP installed on IOS and Android systems to control single color, dual color LEDs and RGBW LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of changing colors. Thanks to the built-in WiFi to RF module, the great advantage of this WiFi controller is that it can be controlled by RF remotes as well as by APP on IOS and Android systems directly without WiFi-RF converter. Free App is available from APP store and Google Play, just download it on your IOS or Android system, then search and connect your mobile device WLAN to the WiFi controller network and every thing is ready.
- Universal RF&WiFi RGB/RGBW LED controller
- 8A 12-36VDC constant voltage controller
- Full compatibility with a variety of single color, dual color, RGB/RGBW RF remotes, and APP
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Each receiver can be controlled by 8 different remotes maximally
- Can be directly controlled by APP installed on IOS or Android moble devices without WiFi-RF converter
- Brightness of each R, G, B and W can be adjustable to achieve millions of colors
- Radio frequency available: 869.5/434/916.5MHz
|Part No.||Input Voltage||Output Current||Output Power||Output type||Dimension (mm)|
|SR-1009EAWi||12-36VDC||4CH, 8A/CH||384-1152W||Constant Current||58*168*28|
Wiring Diagram for Multiple Units
To know further details of this product, please download the following user manual.
SR-1009EAWi User Manual
