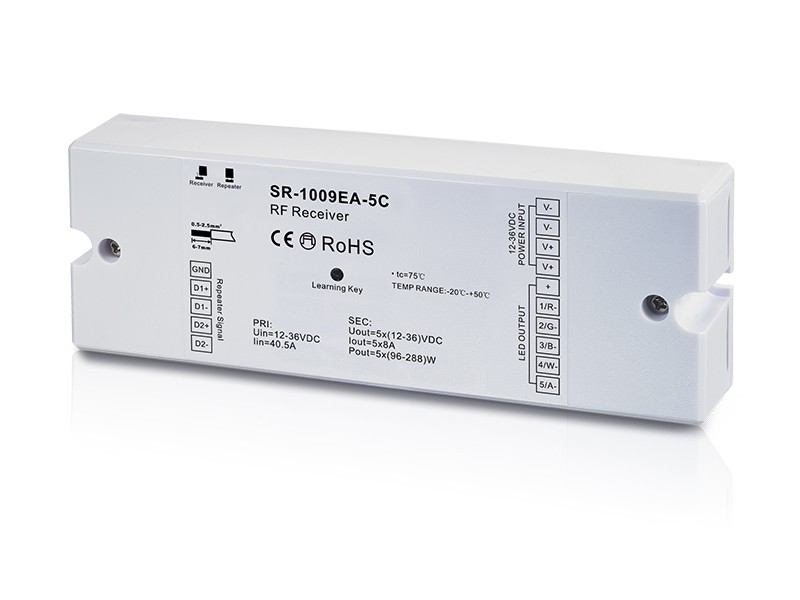

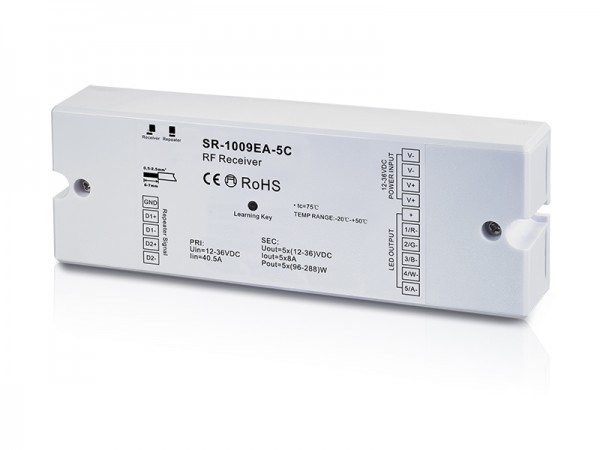

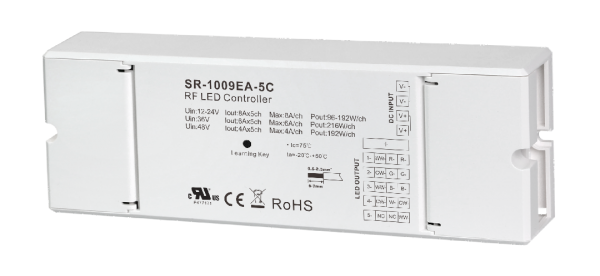

The RF LED receiver SR-1009EA-5C is a 5 channel full functional constant voltage LED controller available with 12-36VDC and max. 5A per channel output, which can drive RGB and dual color (warm white and cold white) LED lighting with a single receiver while pairing with a RGB & CCT remote. In addition to RGB & CCT LEDs, the 5 channel rf receiver also supports mono chrome, dual color, RGB and RGBW LED lighting while pairing with corresponding remote or wall mounted control.
It offers not only smooth brightness dimming function but also accurate color temperature and RGB color tone adjustment with PWM output. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of colors. While working with WiFi-RF converters, the RF receiver can be WiFi controlled by APP installed on IOS or Android mobile devices. Waterproof version is available with IP67 rating.
Key Features
- 5 channel full functional constant voltage RF LED controller available with 12-36VDC and max. 5A per channel output
- Enables to drive RGB and dual color (warm white and cold white) LED lighting with a single receiver while pairing with a RGB & CCT remote
- Also supports mono chrome, dual color, RGB and RGBW LED lighting while pairing with corresponding remote or wall mounted control
- Full compatibility with a variety of mono chrome, dual color, RGB/RGBW and RGB+CCT RF remotes
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Each receiver can be controlled by 8 different remotes maximally
- Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-RF converter
- Brightness of each R, G, B and W can be adjustable to achieve millions of colors
- Radio frequency available: 869.5/434/916.5MHz

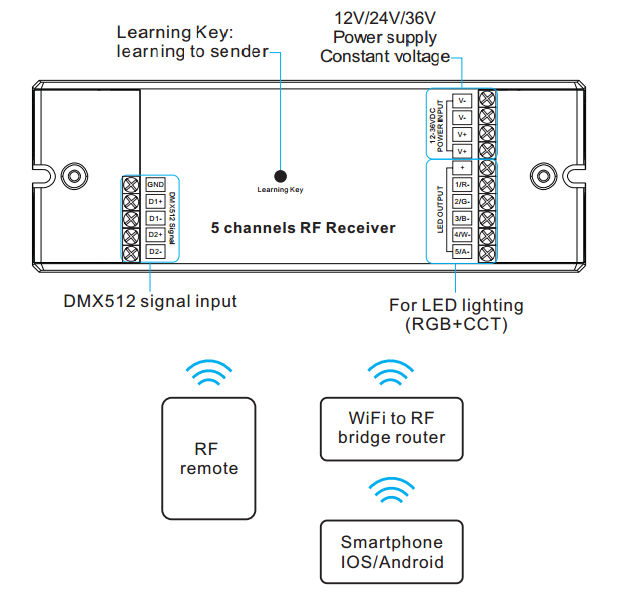

Function Introduction

Specifications
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-1009EA | 12-36VDC | 5CH, 5A/CH | 300-900W | Constant Voltage | 59*170*29 |

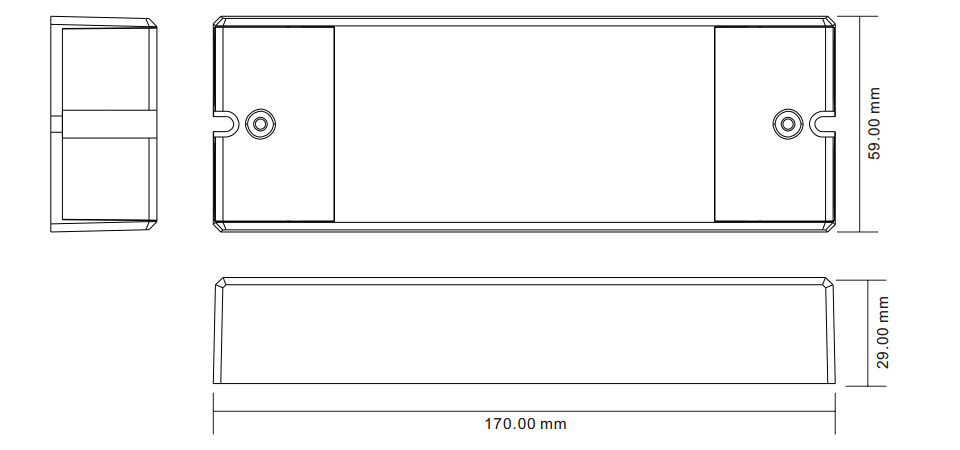

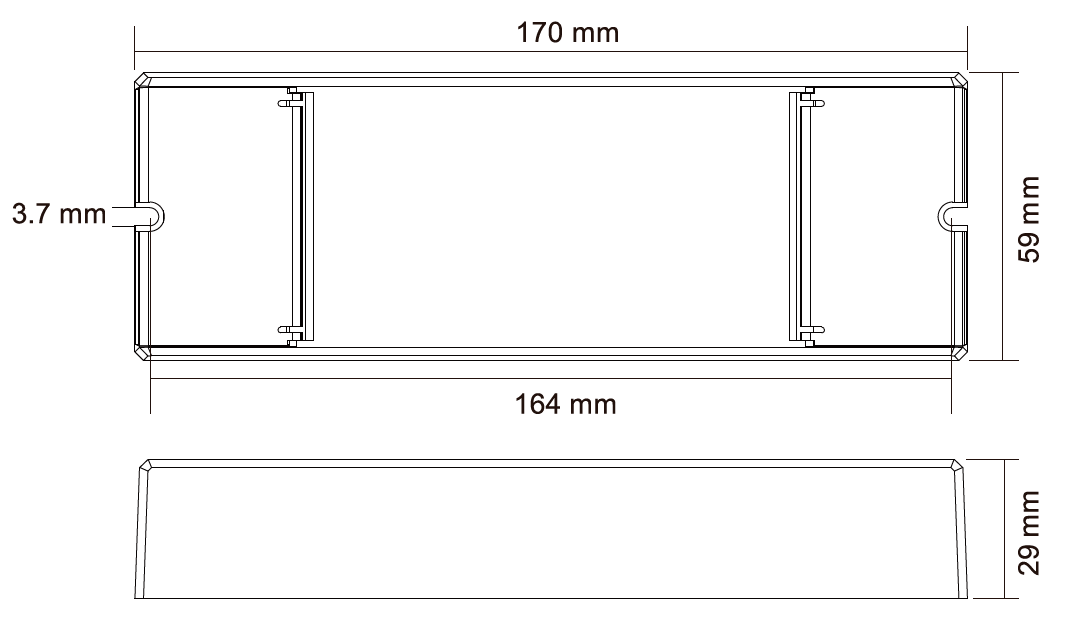

Product Dimension

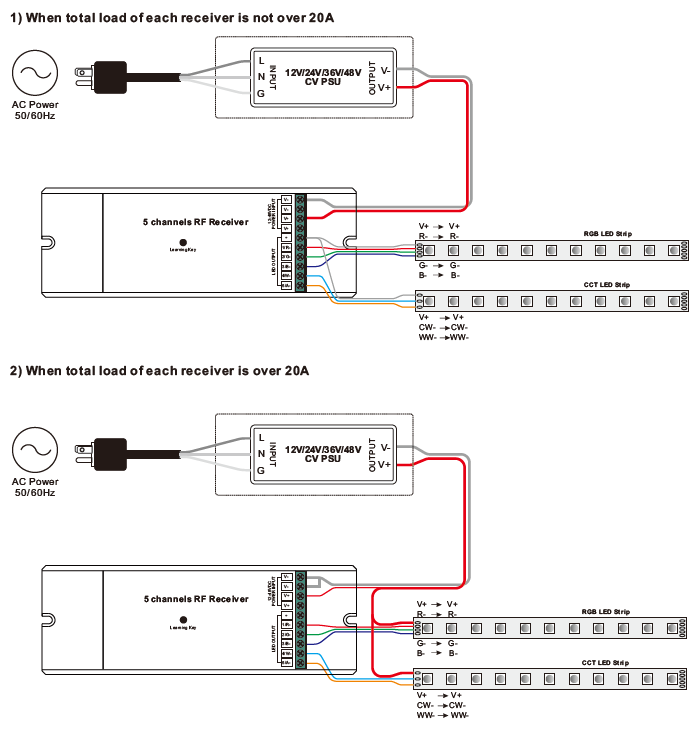

Wiring Diagram

Download Center
To know further details of this product, please download the following user manual.
SR-1009EA-5C User Manual
