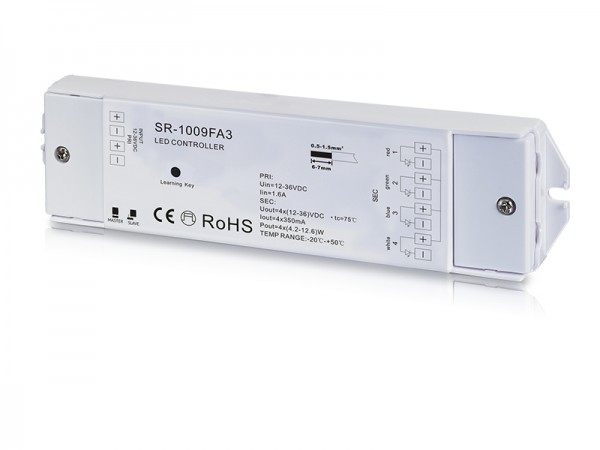

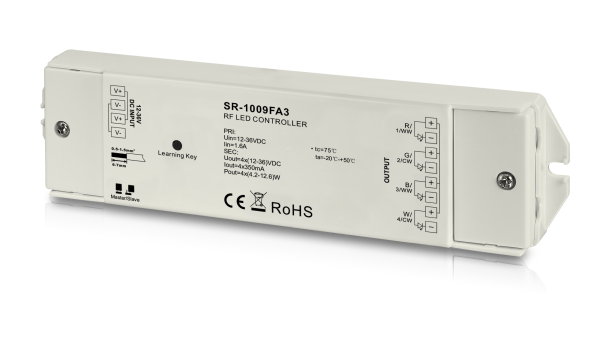

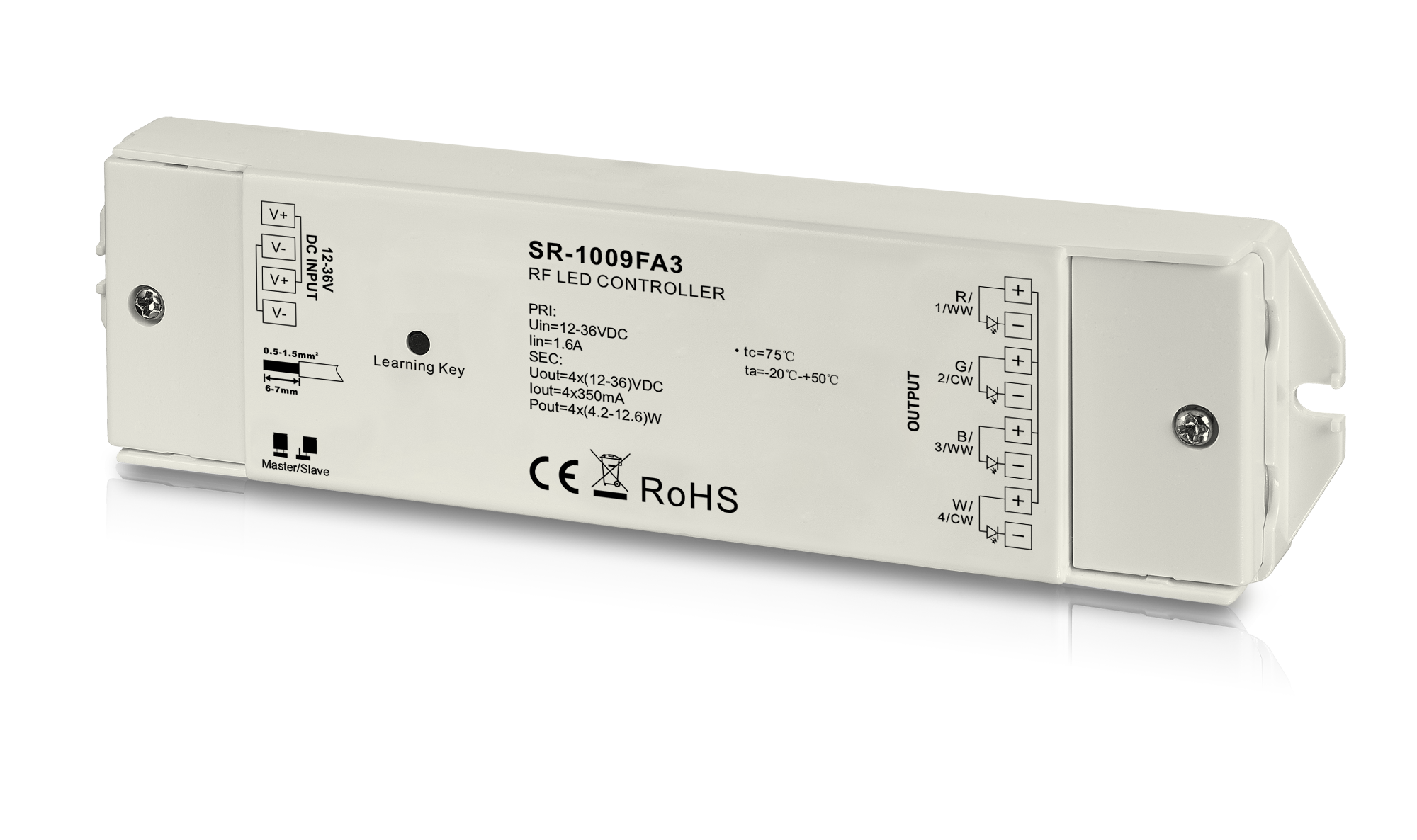

The SR-1009FA3 is 4CH 350mA RF constant current LED controller which can be compatible with a variety of remotes to control single color, dual color LEDs and RGBW LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Built-in changing patterns are available and can be saved to each zone. Brightness of each R, G, B, W channel can be adjustable separately to achieve millions of changing colors. While working with WiFi-RF converters, the RF controller can be WiFi controlled by APP installed on IOS or Android mobile devices. Waterproof version is available with IP67 rating.
- 4CH 350mA constant current LED controller
- Full compatibility with a variety of single color, dual color and RGB/RGBW RF remotes
- Multiple zones can be controlled separately or synchronously with endless receivers in each zone
- Each receiver can be controlled by 8 different remotes maximally
- Can be WiFi controlled by APP installed on IOS or Android moble devices while working with WiFi-RF converter
- Brightness of each R, G, B and W can be adjustable to achieve millions of colors
- Radio frequency available: 869.5/434/916.5MHz
|Part No.||Input Voltage||Output Current||Output Power||Output type||Dimension (mm)|
|SR-1009FA3||12-36VDC||4CH, 0.35A/CH||16.8-50.4W||Constant Current||46*178*18|
To know further details of this product, please download the following user manual.
SR-1009FA3 User Manual
