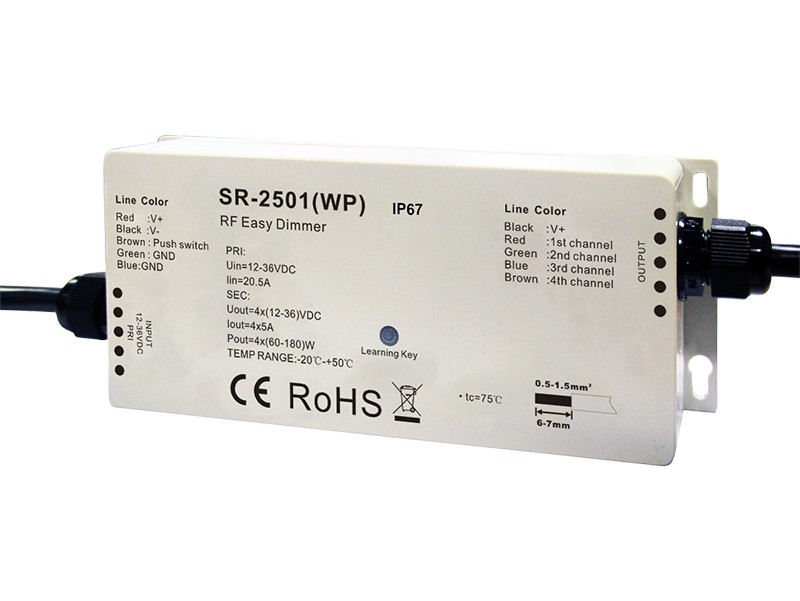

- Waterproof RF Dimmer SR-2501WP
The universal RF dimmer SR-2501WP series is a waterproof RF receiver with IP67 rating, which can be compatible with a variety of remotes to switch and dim single color LEDs with constant current and constant voltage version optional. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Smooth dimming from 0.1% to 100% without any flickering can be very comfortable for human eyes. In addition, this controller can be compatible with push button dimmers to simplify the control. The waterproof RF LED dimmer can be used in outdoor and damp environment.
Key Features
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501NWP | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 181*74*38.0 |
SR-2502NWP | 12-36VDC | 4CH, 0.35A/CH | 16.8-50.4W | Constant Current | 181*74*38.0 |
SR-2503NWP | 12-36VDC | 4CH, 0.7A/CH | 33.6-100.8W | Constant Current | 181*74*38.0 |

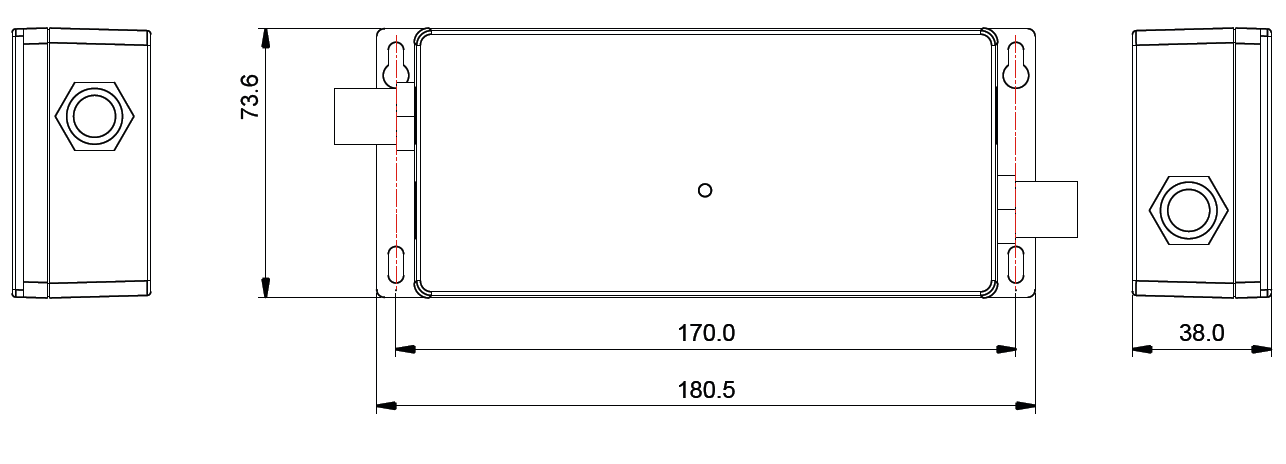

Product Dimension

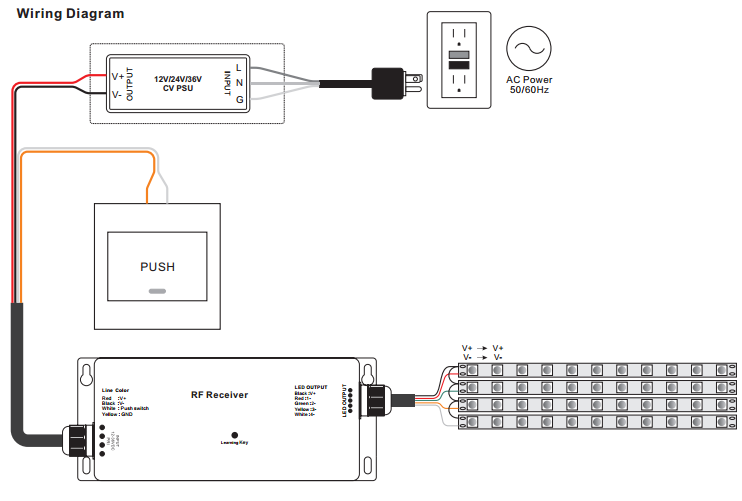

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2501WP User Manual
