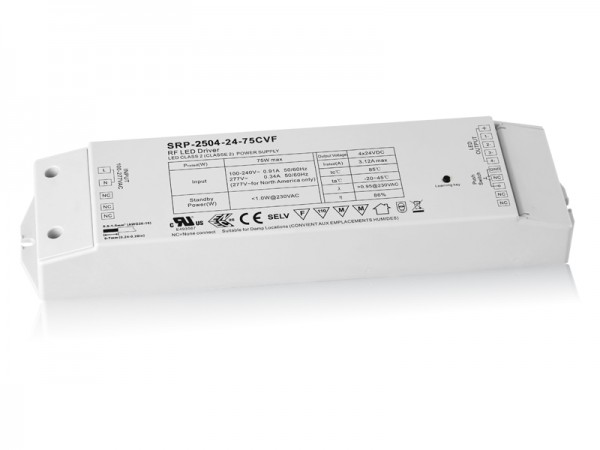

The SRP-2504-24-75CVF is a UL & ENEC approved 75W constant voltage RF LED dimmable driver with 100-277VAC wide input and 4 channels PWM output. The output voltage is available in 12VDC and 24VDC. Compatible with a variety of Easy RF series remote controllers, the RF LED driver is able to control RGB/RGBW LED lighting. Push dim function is available while the RF dimmable driver connected with a push switch. With over current, over temperature, short circuit protection and IP20 rating, the LED driver is reliable and suitable for indoor use. UL and ENEC certification ensures high safety performance of the driver to be used worldwide.
Key Features
- 75W RF LED dimmable driver
- UL and ENEC certification
- RF receiver, 868MHZ/433MHZ frequency
- Universal input 100-277VAC
- Constant current output, 4 channels PWM output
- Output voltage available in 12VDC and 24VDC
- Standby power consumption < 0.5W
- Built-in active PFC function
- Power factor > 0.96, efficiency > 86%
- PWM dimming output, smooth and deep dimming to 0.1%, flicker free
- Compatible with a variety of Easy RF remote controls
- Push dim function available when connected with a simple push switch
- To control RGB/RGBW LED lighting
- Over current protection, over heat protection, short circuit protection
