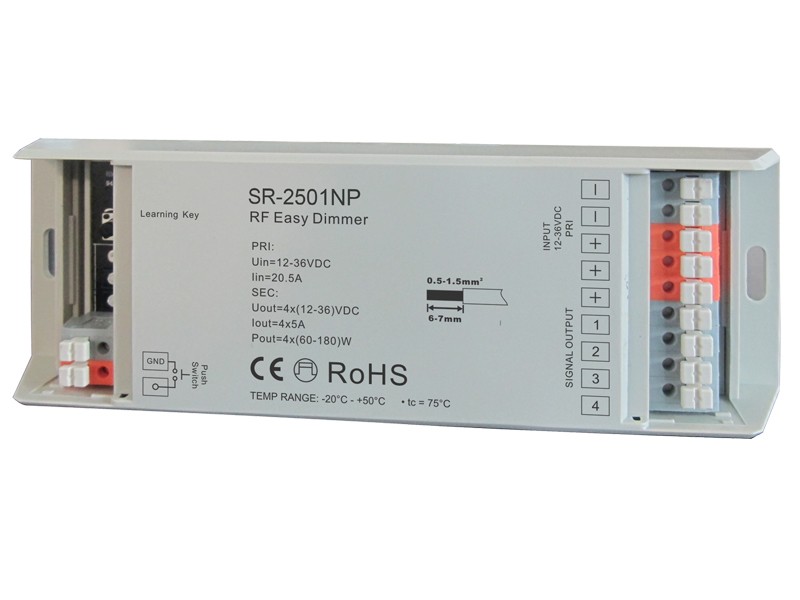

- 5A 4CH Constant Voltage RF LED Dimmer SR-2501P
The RF LED dimmer SR-2501P is a 12-36VDC constant votage RF receiver with 4 channel and 5a per channel output, which can be compatible with a variety of remotes to dim and switch single color LED lighting. Smooth and accurate brightness adjustment without any flickering can be very comfortable for human eyes. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Designed with easy connection terminal without screw, the connection can be very easy and fast. The RF dimmer can be compatible and controlled by push switch.
Key Features
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2501P | 12-36VDC | 4CH, 5A/CH | 240-720W | Constant Voltage | 53*166*23 |

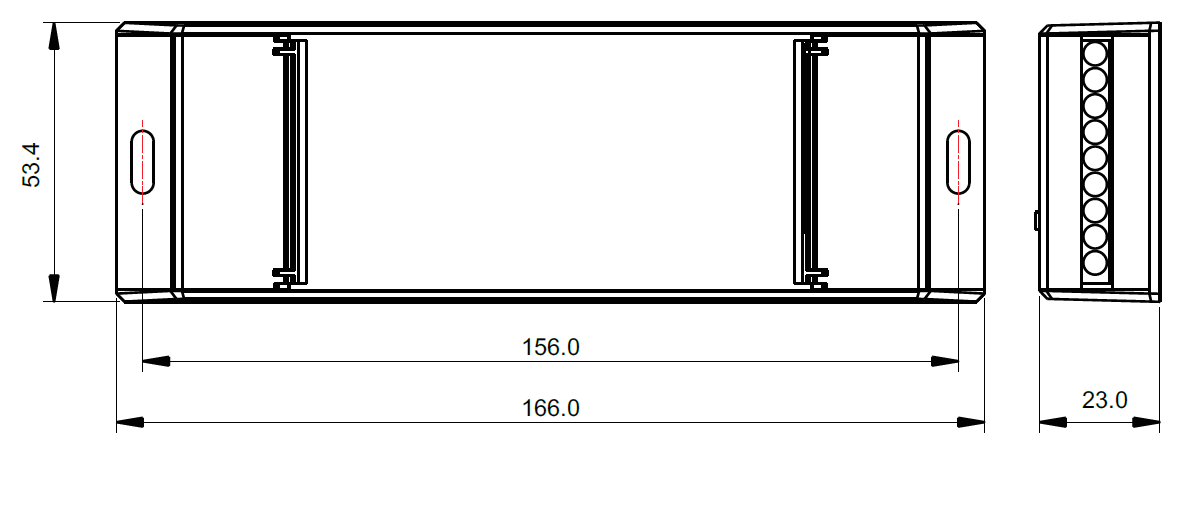

Product Dimension

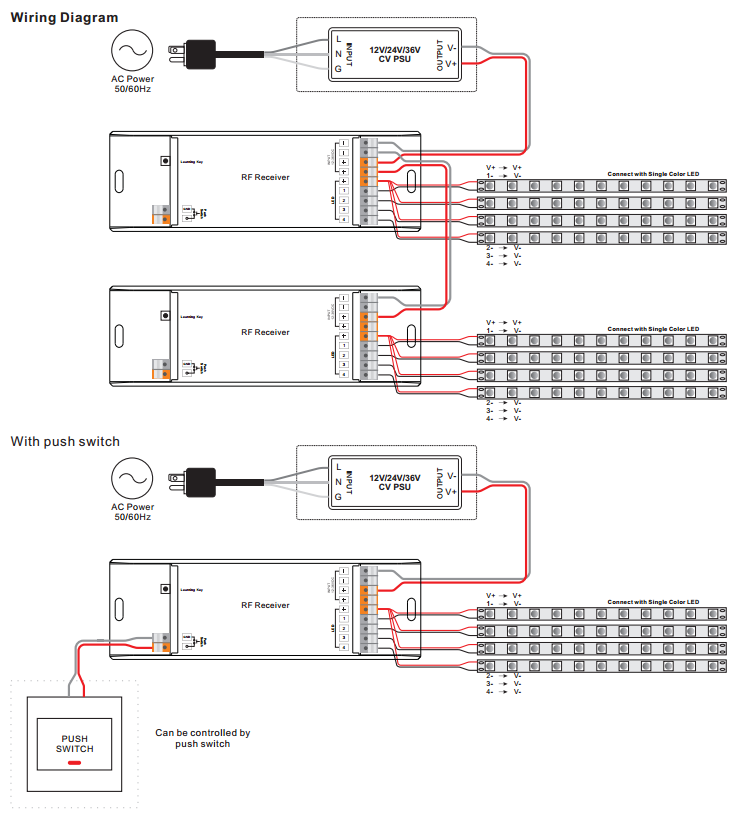

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2501P User Manual
