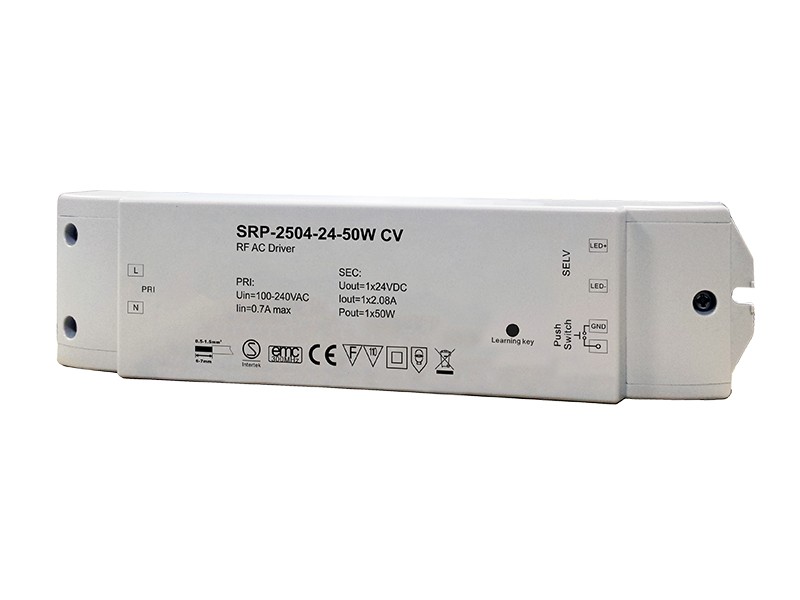

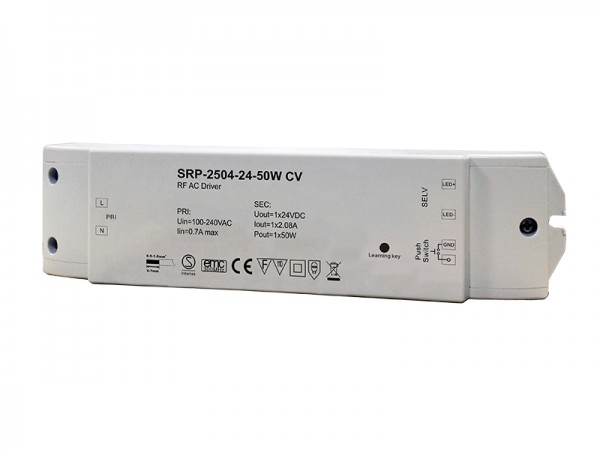

- 50W Constant Voltage RF LED Dimmable Driver SRP-2504-24-50CV
The SRP-2504-24-50CV is a 50w RF LED dimmable driver with 200-240VAC input and constant voltage output. The output voltage can be available in 12VDC or 24VDC by factory setting. Power factor can be over 0.9, efficiency can be over 86%. Push dim function is available while the driver is connected with a simple push switch. The RF CV LED driver is designed to switch and dim single color LED lighting with over current protection, over heat protection and short circuit protection.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Power | Output Current | Dimension (mm) |
---|---|---|---|---|---|
SRP-2504-12-50CV | 100-240VAC | 12VDC | 50W | 4.16A max. | 50*210*32 |
SRP-2504-24-50CV | 100-240VAC | 24VDC | 50W | 2.08A max. | 50*210*32 |
Product Dimension

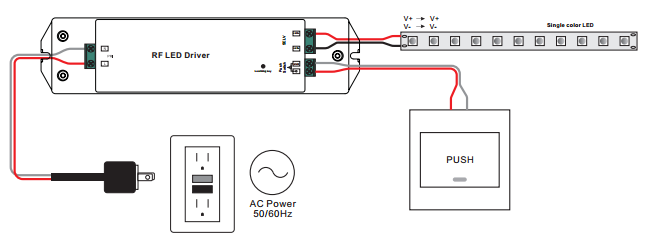

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2504-24-50CV User Manual
