- 50W Constant Current RF LED Dimmable Driver SRP-2504-50CC

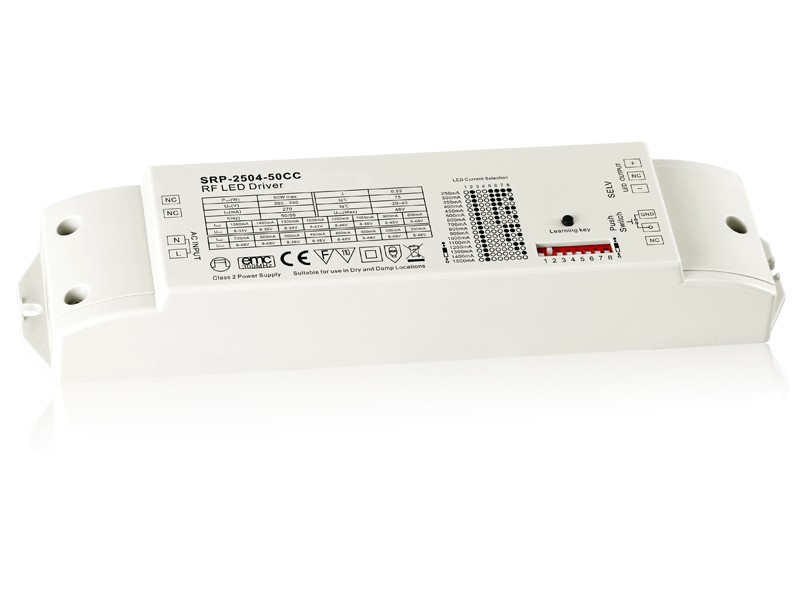

The SRP-2504-50CC is a 50w RF LED dimmable driver with 200-240VAC input and constant current output. The output current is adjustable by the DIP switch on the driver from 250mA to 1500mA. Push dim function is available while the driver is connected with a simple push switch. Power factor can be over 0.9, efficiency can be over 86%. The RF CC driver is designed to switch and dim single color LED lighting with over current protection, over heat protection and short circuit protection.
Key Features
Specifications
Part No. | Input Voltage | Input Current | Output Current | Output Voltage Range | Output type | Dimension (mm) |
---|---|---|---|---|---|---|
SRP-2504-50CC | 200-240VAC | 0.5A Max. | 250mA-1500mA | 8-48VDC | Constant Current | 50*210*32 |

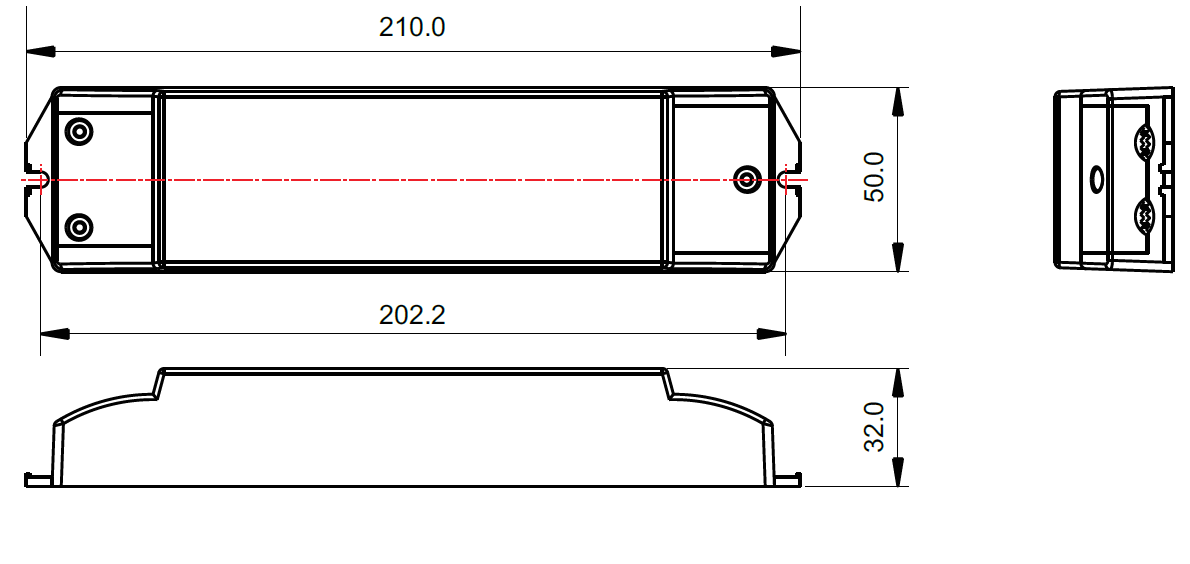

Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SRP-2504-50CC User Manual
