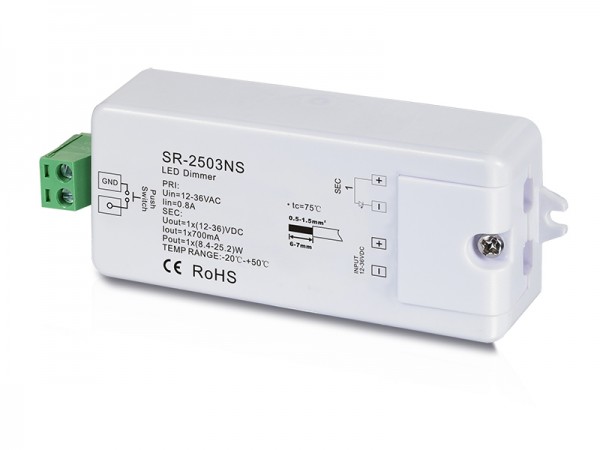

- 1 Channel Constant Current RF Dimmer SR-2503NS
The RF dimmer SR-2503NS is a mini size 1 channel RF receiver with 12-36VDC input and 0.7A per channel output, which can be compatible with a variety of remotes to switch and dim single color LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Smooth dimming from 0.1% to 100% without any flickering can be very comfortable for human being's eyes. In addition, this controller can be compatible with push button dimmers to simplify the control.
Key Features
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2503NS | 12-36VDC | 1CH, 0.7A/CH | 8.4-25.2W | Constant Current | 33*82*20 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2503NS User Manual
