- 1 Channel Constant Current RF Dimmer SR-2502NS

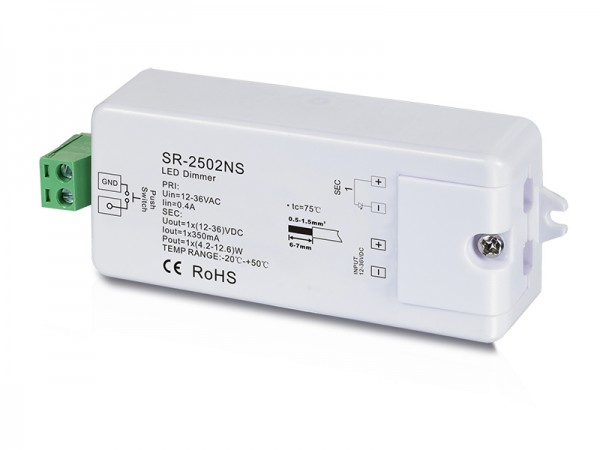

The RF dimmer SR-2502NS is a mini size constant current 1 channel RF receiver with 12-36VDC input and 0.35A per channel output, which can be compatible with a variety of remotes to switch and dim single color LEDs. Multiple zones can be controlled separately or synchronously with endless receivers in each zone. Smooth dimming from 0.1% to 100% without any flickering really does good to human being's eyes. In addition, this controller can be compatible with push button dimmers to simplify the control.
Key Features
Specifications
Part No. | Input Voltage | Output Current | Output Power | Output type | Dimension (mm) |
---|---|---|---|---|---|
SR-2502NS | 12-36VDC | 1CH, 0.35A/CH | 4.2-12.6W | Constant Current | 33*82*20 |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2502NS User Manual
