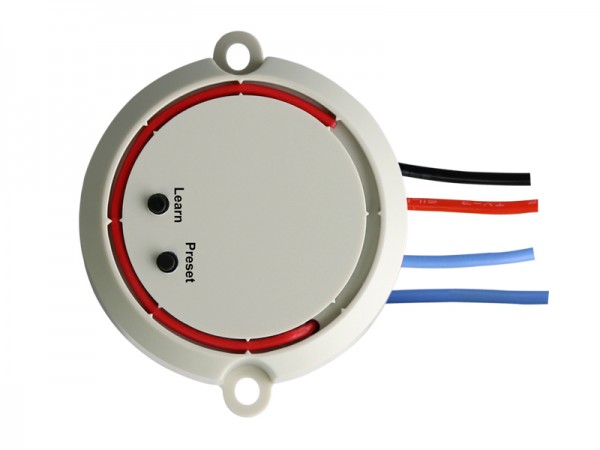

- 1 Channel AC Triac RF Dimmer SR-2501SAC
The SR-2501SAC is a Triac RF dimmer designed with 220-240VAC input and 220-240VAC output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. The LED dimmer is designed with single channel and maximum 100W output. The RF dimmer is both triac dimmable and mosfet dimmable. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The RF triac dimmer can be compatible with a variety of Easy RF series remote controls.
Key Features
Specifications
Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
---|---|---|---|---|---|---|
SR-2501SAC | 220-240VAC | 220-240VAC | 0.45A max. | 100W max. | IncandescentHv-halogen lampsDimmable LED lamps | D46.5*H19.5 |
Control Type | Controller Model |
---|---|
Handhold | SR-2801, SR-2801F, SR-2802, SR-2807, SR-2828 |
Wall Mounted Touch | SR-2805T1, SR-2805T2, |
Wall Mounted Push | SR-2801K1/K2 |
Wall Mounted Rotary | SR-2805R, SR-2805D, SR-2805NF, SR-2805ST |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2501SAC User Manual
