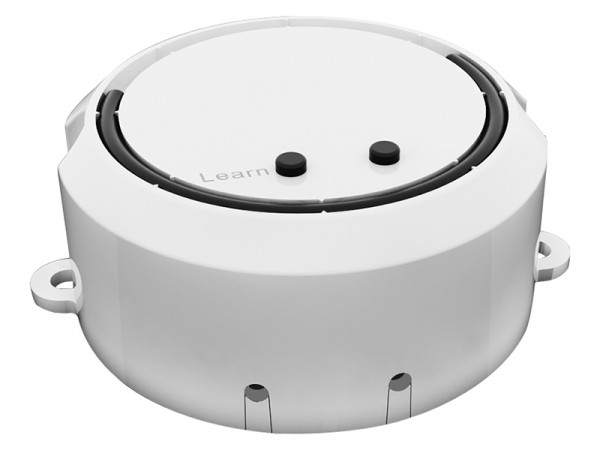

The SR-2501SAC-Switch is a Triac RF switch designed with 220-240VAC input and 220-240VAC output and safe and reliable full isolation design to switch on/off single color LED lamps, traditional incandescent and halogen lights. The RF switch comes with 1 channel and maximum maximum 100W output and can be compatible with a variety of Easy RF series remote controls.
Key Features
Specifications
| Part No. | Input Voltage | Output Voltage | Output Current | Output Power | Load type | Dimension (mm) |
|---|---|---|---|---|---|---|
| SR-2501SAC-Switch | 220-240VAC | 220-240VAC | 0.45A max. | 100W max. | IncandescentHv-halogen lampsLED lamps | D46.5*H19.5 |
| Control Type | Controller Model |
|---|---|
| Handhold | SR-2801, SR-2801E, SR-2801F, SR-2802, SR-2807, SR-2828 |
| Wall Mounted Touch | SR-2805T1, SR-2805T2, |
| Wall Mounted Push | SR-2801K1/K2 |
| Wall Mounted Rotary | SR-2805R, SR-2805D, SR-2805NF, SR-2805ST |
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2501SAC-Switch User Manual
