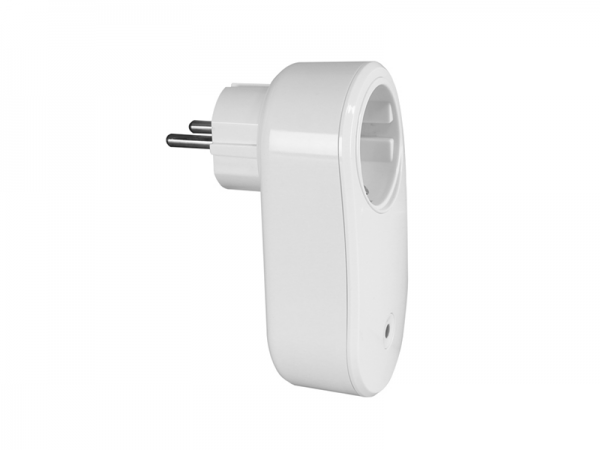

Zigbee Smart Plug SR-ZG9020A

Product Description

Based on latest ZigBee 3.0 protocol, this ZigBee smart plug enables to control ON/OFF of the load and supports max. 16 scenes. With waterproof grade of IP20, this ZigBee end device supports Touchlink commissioning, supports find and bind mode to bind a ZigBee remote, supports zigbee green power and can bind max. 20 zigbee green power switches, and supports over current protection and power metering, and enables to report power consumption to gateway.

Key Features

• ZigBee smart plug based on latest ZigBee 3.0 protocol

• Enables to control ON/OFF of the load, supports max. 16 scenes

• ZigBee end device that supports Touchlink commissioning

• Supports find and bind mode to bind a ZigBee remote

• Supports zigbee green power and can bind max. 20 zigbee green power switches

• Supports over current protection and power metering, enables to report power consumption to gateway

• Waterproof grade: IP20

Specifications

Part No.	Operating Temperature	Input Voltage	Relative Humidity	Radio Frequency	Size (LWH)
SR-ZG9020A	0 to 40°C	AC200-240V	8% to 80%	2.4GHz	114.8×54.8×74.7(mm)

Function Introduction

Product Dimension

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-ZG9020A-Instruction.pdf
