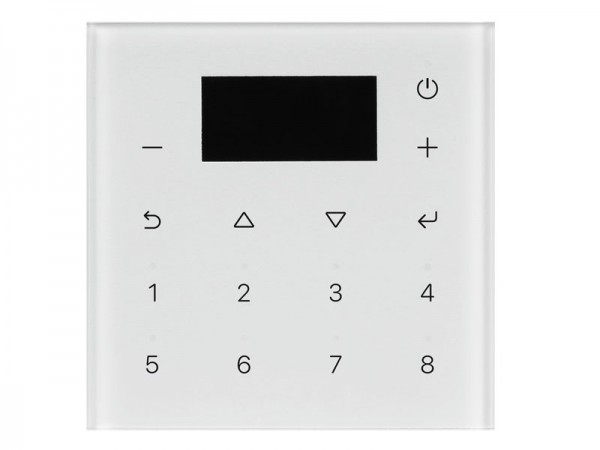

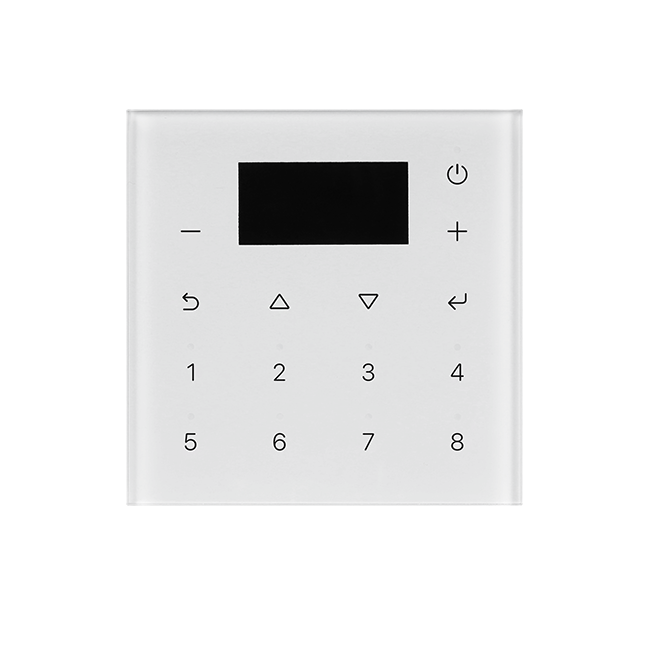

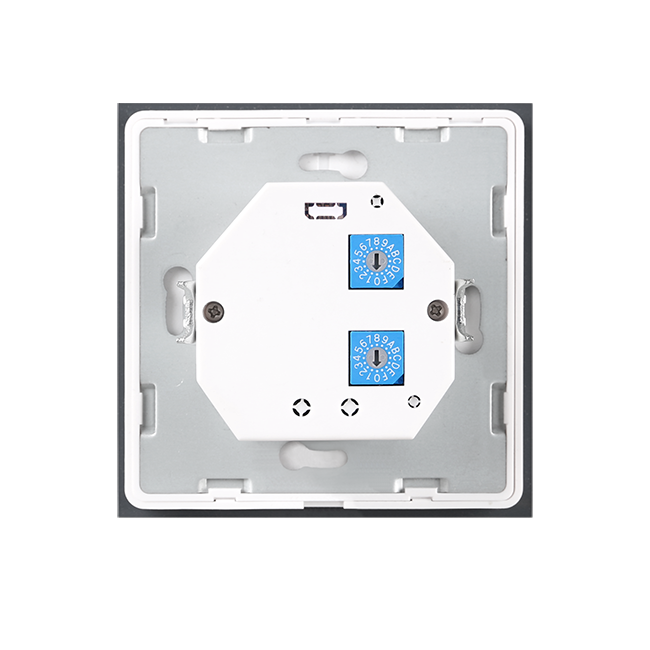

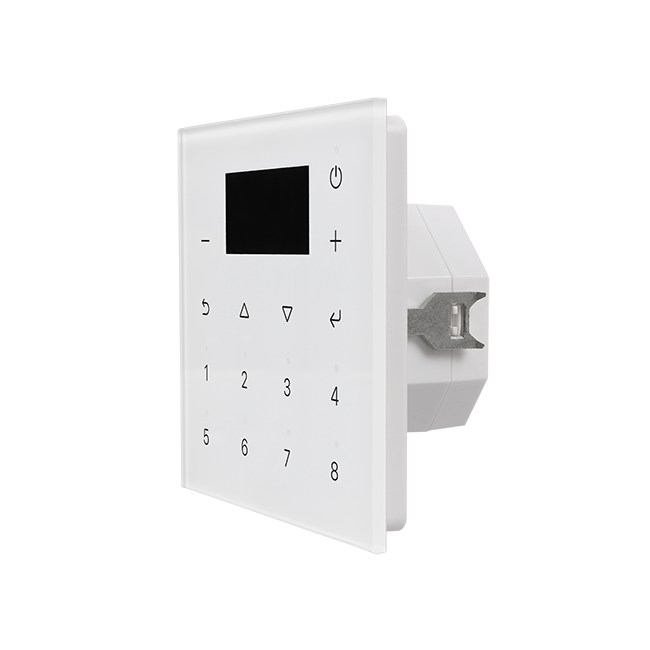

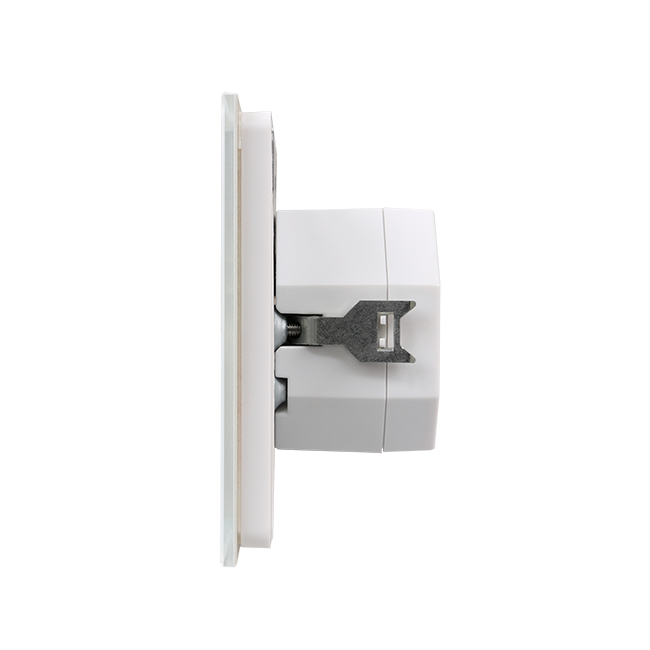

DALI Master Controller Touch Panel SR-2300T-OLED

The DALI Master control panel SR-2300T-OLED is a central controller of a DALI system to control DALI control gears on the DALI line. It enables to automatically assign and manage addreses to up to 64 control gears. It supports 5 DALI control gear device types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWA, DT7 Switching actuator. It also supports DALI-2 type 301 push button input devices. It enables to set up to 16 DALI scenes for each control gear. It enables to assign each control gear to up to 16 DALI groups. It enables to set up to 256 timer tasks. It enables to set up to 4 types brightness fade and color fade cycle schedules. It enables to set up to 4 Bionic color temperature schedules for the CCT control gears. It is designed with PC configuration software tool, enables to configure and read parameters of the DALI control panel and control gears, and manage the control panel and control gears.

Key Features

• Central controller of a DALI system to control DALI control gears on the DALI line
• Enables to automatically assign and manage addreses to up to 64 control gears
• Enables to control up to 64 control gears with 64 addresses
• Supports 5 DALI control gear device types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWA, DT7 Switching actuator
• Supports DALI-2 type 301 push button input devices
• Enables to set up to 16 DALI scenes for each control gear
• Enables to assign each control gear to up to 16 DALI groups
• Enables to set up to 256 timer tasks
• Enables to set up to 4 types brightness fade and color fade cycle schedules
• Enables to set up to 4 Bionic color temperature schedules for the CCT control gears
• Designed with PC configuration software tool, enables to configure and read parameters of the master and control gears
