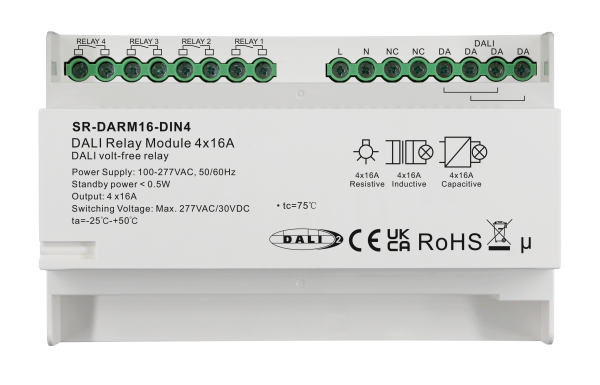

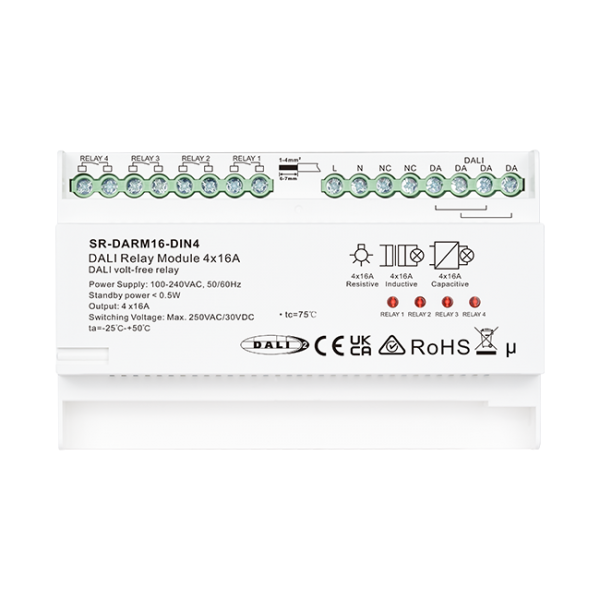

4CH 4x16A DIN Rail DALI DALI-2 Relay Switch SR-DARM16-DIN4

• DALI relay module, DALI-2 certified

• DIN rail installation

• 100-277VAC power supply

• 4 channels relay module

• Control of 4 standard contactors

• DIN rail relay module for controlling 4 standard contactors via DALI

• Loads that do not have a DALI input can therefore be integrated in the DALI circuit

• The loads can be switched on and off via DALI

• With zero crossing detection, the relay switching life cycle greatly increased

• Compatible with universal DALI systems and master controllers in the market

• DIN rail installation, compatible with standard 35mm DIN rail

• 5 years warranty

• Waterproof grade: IP20

Specifications

DALI control input	DALI consumption	Number of DALI addresses	Switching voltage AC	Switching voltage DC	Current	Type of contact
1	< 3mA	4	Max. 250V	Max. 30V	Resistive load: max. 416A Inductive load: max. 416A Capacitive load: max. 4*16A	4 normally closed

Function Introduction

Wiring Diagram

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-DARM16-DIN4 User Manual
