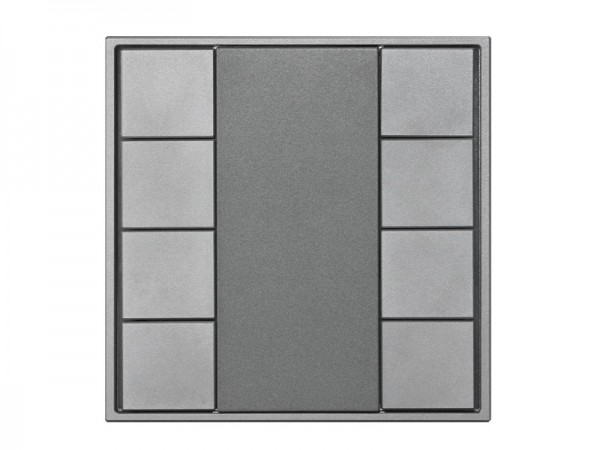

- DALI-2 Certified Sleek Design 8-Button Keypad SR-2422NK8-DA2
The keypad SR-2422NK8-DA2 is a DALI-2 certified DALI-2 control device with 8 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. It is designed with sleek and low profile appearance. The input device supports feedback functionality and provides 16 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.
This DALI-2 push button is available with different colors and materials for different application environments.
Key Features
Part No. | Typ. DALI Consumption | Max. DALI Consumption | No. of Instance for Control Device | No. of Feedback LED | Dimension (mm) |
---|---|---|---|---|---|
SR-2422NK8-DA2 | 2mA | 10mA | 8 programmable push buttons | 16 programmable LEDs | 80*80*26.6 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2422NK8-DA2 User Manual
