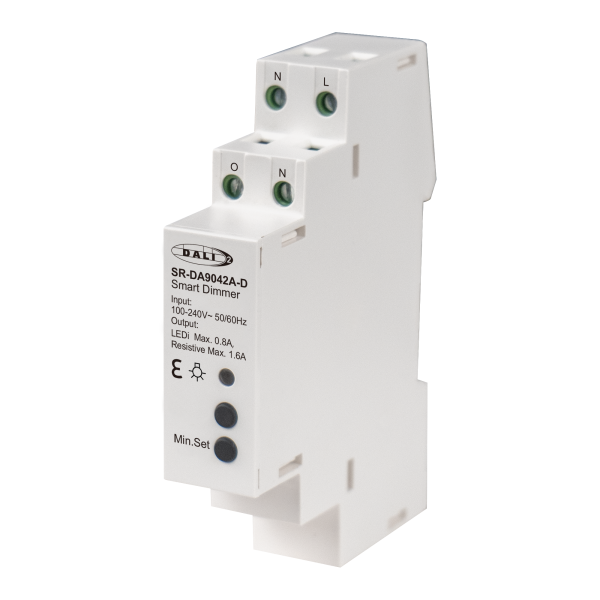

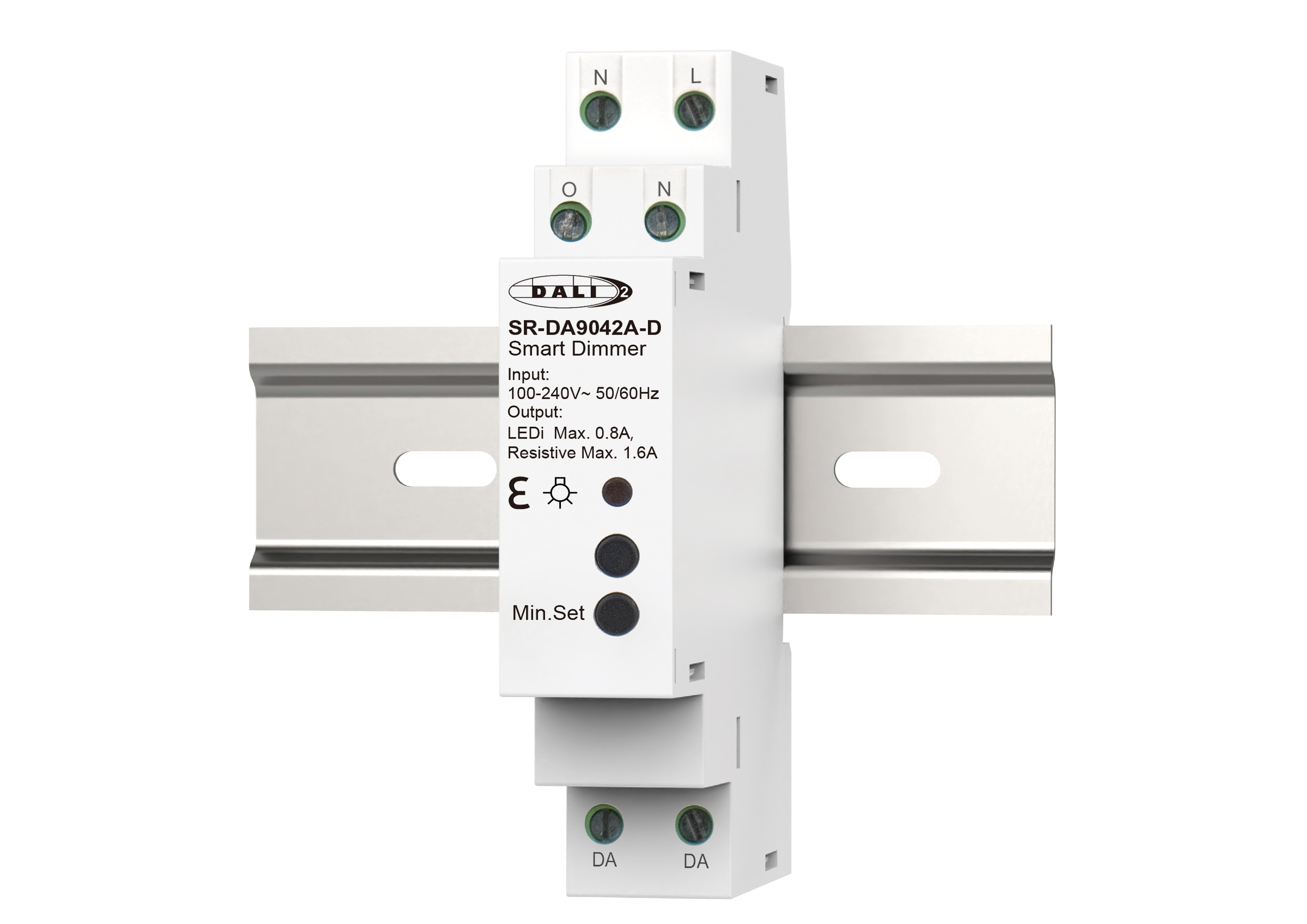

The SR-DA9042A-D is a DALI DIN Rail AC phase-cut dimmer supporting 100–240VAC input/output. It handles resistive, capacitive, or inductive loads up to 400W with 1-channel output. Available in leading or trailing edge versions, it offers reliable ON/OFF and dimming control via screw terminals.
Key Features
• DALI AC phase cut dimmer
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 400W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
Specifications
| Input Voltage | Output Voltage | Output Current | Output Channel | Max. Output Power | Dimension (L*W*H) |
|---|---|---|---|---|---|
| 100-240VAC | 100-240VAC | 0.1-1.8A | 1CH | 400W | 90x66x18mm |

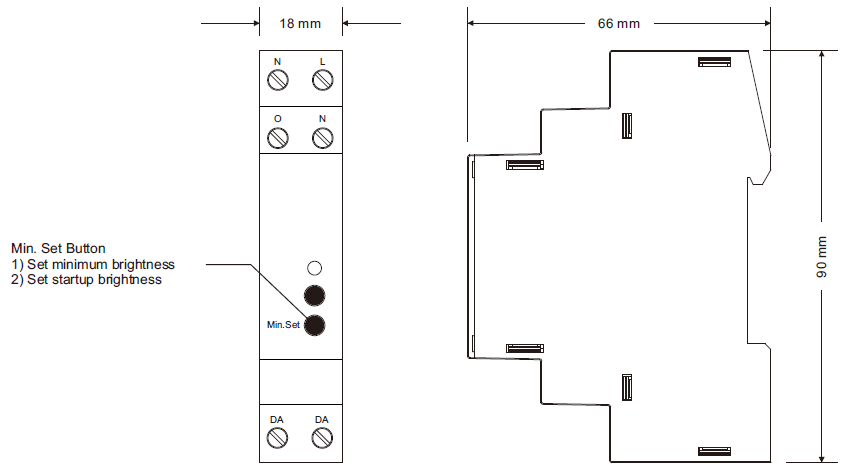

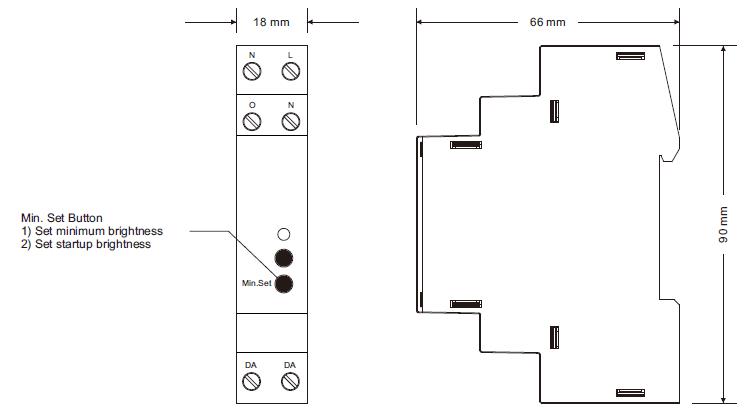

Product Dimension

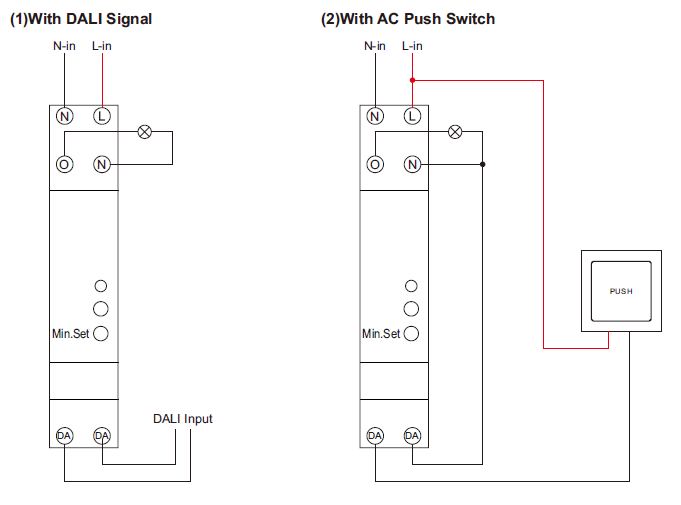

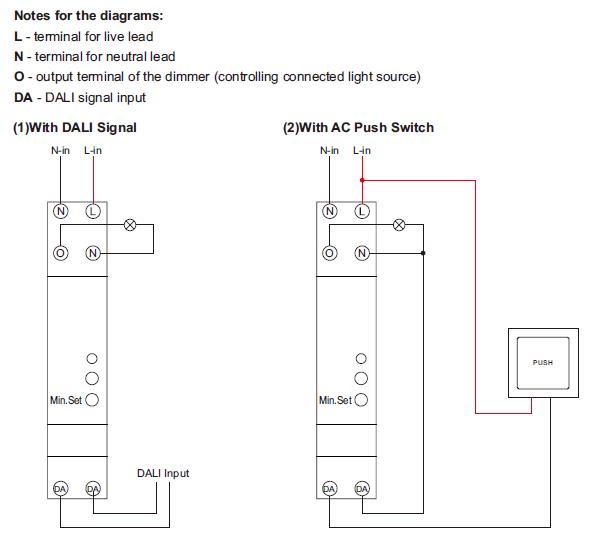

Wiring Diagram
Coming soon
Download Center
To know further details of this product, please download the following user manual.
SR-DA9042A-D User Manual.pdf
