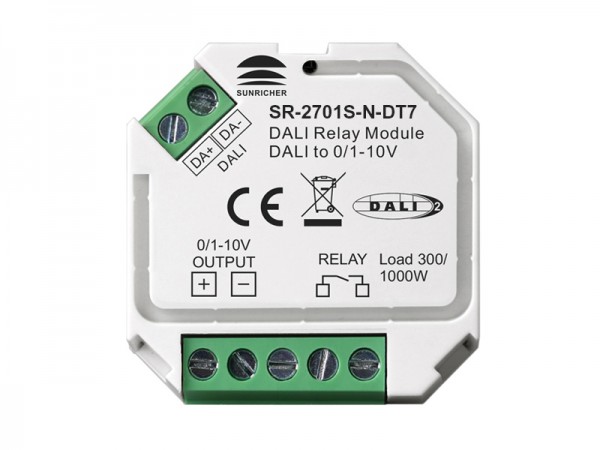

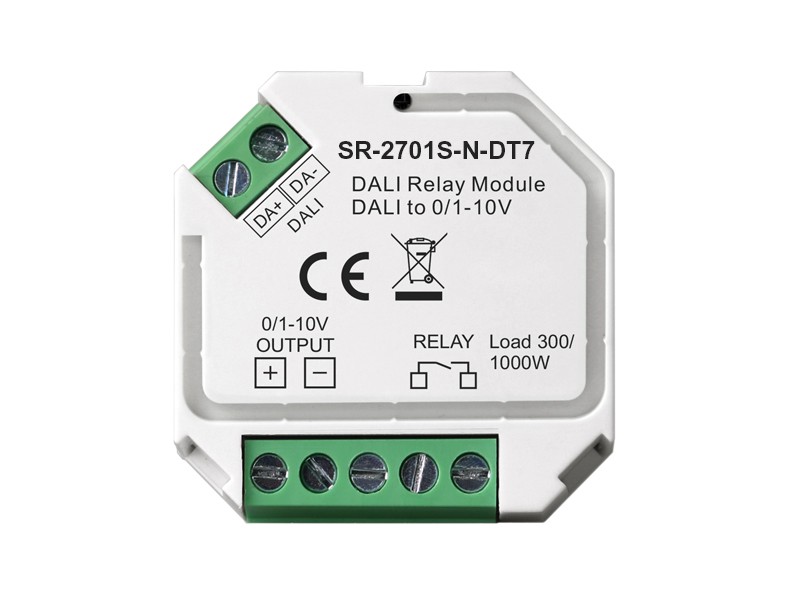

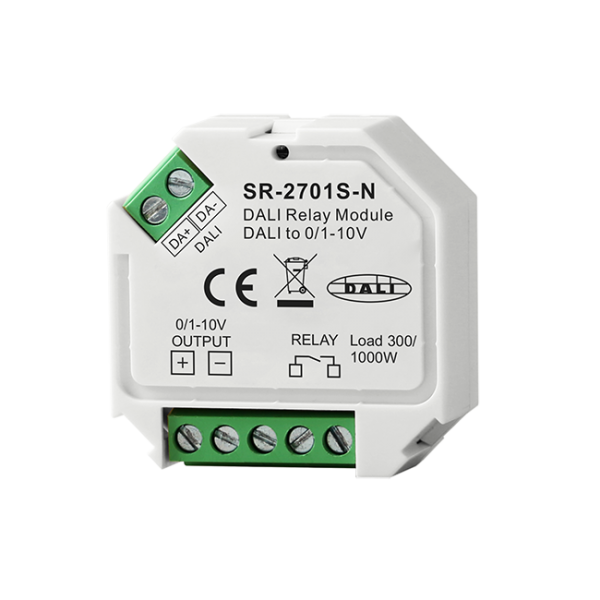

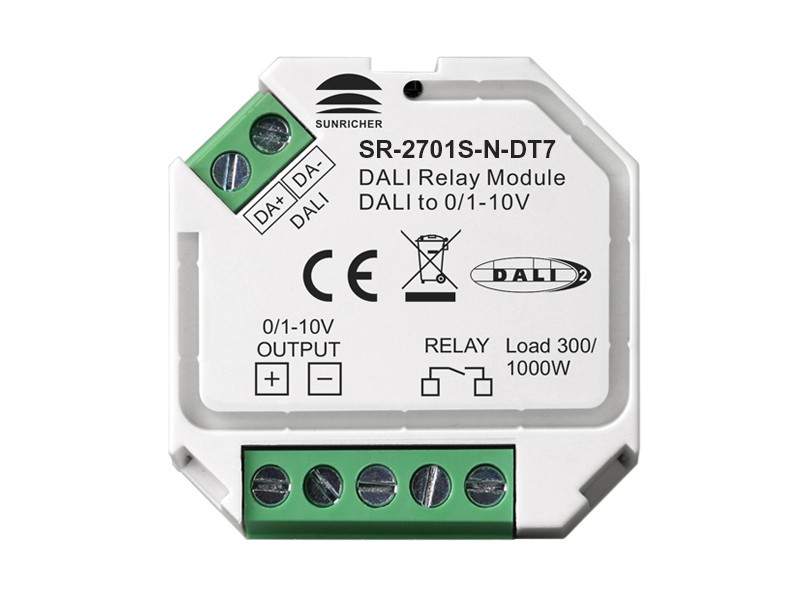

- DALI Relay Module + DALI to 0/1-10V Converter SR-2701S-N
The SR-2701S-N is a DALI relay module plus DALI to 0/1-10V converter which is capable of switching both AC and DC loads and controlling 0/1-10V dimmable loads. The max. switching voltage for AC loads is 250V, and the max. switching voltage for DC loads is 30V. The DALI RM enables to integrate existing loads which do not have DALI input into DALI circuit and switch on/off the loads. The DALI to 0/1-10V converter enables to integrate 0/1-10V dimmable loads into DALI circuit and control the loads via DALI.
The max. load capacity for conventional incandescent and halogen light sources is 1000W @ 230V, and max. load capacity for LED light sources is 300W @ 230V. It is easy to be installed into existing standard wall boxes or mounted on 35mm DIN rail with an extra mounting bracket.
Key Features
Specifications
Part No. | Switching Voltage AC | Switching Voltage DC | Relay Output Current | Load type | DALI Consumption | 0/1-10V Output | Dimension (mm) |
---|---|---|---|---|---|---|---|
SR-2701S-N | Max. 250V | Max. 30V | Resistive load: max. 4.3ACapacitive load: max. 1.3AInductive load: max. 4.3A | IncandescentHv-halogen lampsLED lamps | <3mA | <10mA | 45x45.5x20.3 |
Product Dimensions
Wiring Diagram
Wiring Diagram
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-2701S-N User Manual
