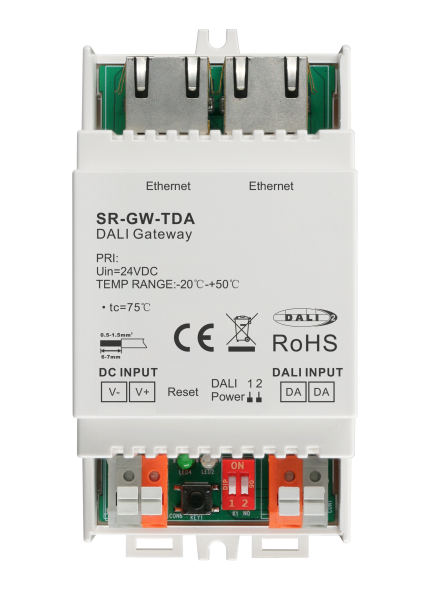

TUYA IoT Smart DALI Gateway Working with Light and Space SR-GW-TDA

SR-GW-TDA supports up to 250mA DALI PS, 64 DALI control gears, enables broadcast control single lamp single control, group control and other different ways of control and supports timing, scene and other linkage control method. It is connected via Ethernet (RJ45 network cable), and the link between the mobile phone and the gateway is not affected by the signal. As long as the mobile phone and the gateway are under the same network, it can be controlled.

Key Features

• Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWAF device types

• No need for DALI master controller; supports up to 64 devices addressing, grouping and scene setting.

• Built-in 250mA DALI PS, no extra wiring required

• Easy connect to a network through Ethernet connection

• Easy & quick configuration through the mobile application

• Built-in battery, built-in RTC, supports timer task configuration

• Supports cycle schedule configuration
