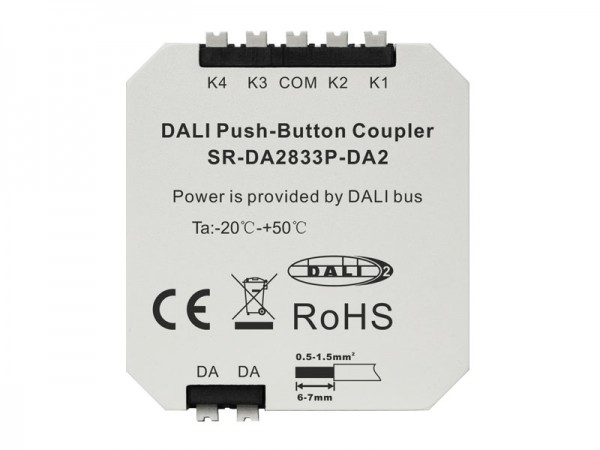

The DALI push button coupler SR-DA2833P-DA2 is industry first DALI-2 certified DALI-2 control device with 4 push buttons according to IEC62386-101, IEC62386-103 and IEC62386-301. This coupler enables to integrate existing push button switches into DALI circuit and convert the switches into DALI input device. The coupler supports 4 push button instances. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.
This DALI push button coupler can be easily installed into existing 55mm wall boxes behind existing push button switches.
Key Features
| Part No. | Typ. DALI Consumption | Max. DALI Consumption | No. of Instance for Control Device | Dimension (mm) |
|---|---|---|---|---|
| SR-DA2833P-DA2 | 2mA | 10mA | 4 programmable push buttons | 71.2*71.2*13 |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-DA2833P-DA2 User Manual
