- Z-Wave Door Window Sensor SR-ZV9010A
Product Description

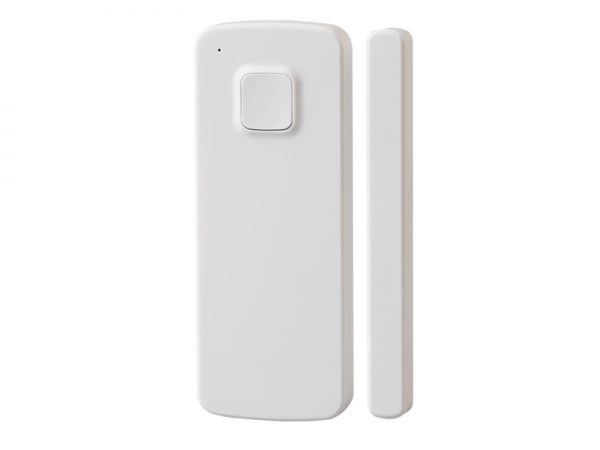

The Z-Wave Door Window sensor is a wireless, battery powered contact sensor, compatible with the Z-Wave Plus standard. Changing the device's status will automatically send signal to the Z-Wave controller and associated devices. Sensor can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc. Opening is detected by separating the sensor's body and the magnet.
The encryption modes that the sensor supports are S0, S2 Unauthenticated. When the door window sensor is being included into a Z-Wave network, you can use your primary controller/gateway to enable one encryption mode or disable encryption. (The primary controller/gateway shall support encryption mode configuration).
• A wireless, battery powered contact sensor
• Compatible with the Z-Wave Plus standard
• Automatically send signal to the Z-Wave controller and associated devices via changing the device’s status
• Can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc.
• Detect opening by separating the sensor’s body and the magnet
• Supported encryption modes: S0, S2 Unauthenticated
• Use primary controller/gateway to enable one encryption mode or disable encryption with the door window sensor being included into a Z-Wave network
Specifications
Part No. |
Power Supply |
Radio Frequency |
Operating temperature | Size(LxWxH) |
---|---|---|---|---|
SR-ZV9010A |
3VDC |
868.42 MHZ (EU)/869.0 MHZ (RU)/908.42 MHZ (US) |
0 to 40°C |
Sensor: 98×38×6(mm), magnet: 98×10×6(mm) |
Function Introduction
Download Center
To know further details of this product, please download the following user manual.
SR-ZV9010A-Instruction.pdf
