Product Description

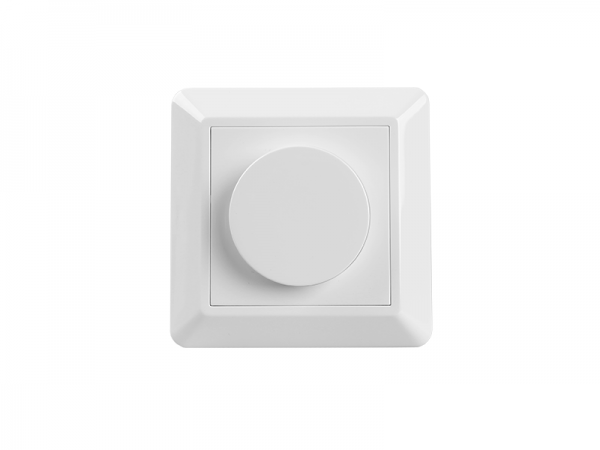

With input and output voltage range of 100-240VAC, this RF+Bluetooth rotary smart dimmer can work under no neutral wiring and with neutral wiring. This device supports resistive loads, capacitive loads or inductive loads, and enables to set minimum brightness and startup brightness. For the RF+Bluetooth rotary smart dimmer, both leading edge version and trailing edge versions are available for choosing, and its factory default is trailing edge. Moreover, it can be controlled through both smart App and remote controls, and no gateway is required. By virtue of standard size, this dimmer can be compatible with existing EU standard frames, and installed into standard size wall box. With push switch input, it can be controlled by universal AC push switches.
Key Features
• RF+Bluetooth rotary smart dimmer
• 100-240VAC wide input and output voltage, can work under no neutral wiring and with neutral wiring, self-adaptive
• Supports resistive loads, capacitive loads or inductive loads
• Enables to set minimum brightness and startup brightness
• 1 channel output, up to 500W
• Both leading edge version and trailing edge versions are available for choosing, factory default is trailing edge
• Enables to control ON/OFF and light intensity of connected load
• Controlled through both smart App and remote controls, no gateway required
• Easy & quick pairing to the smart App by simply pushing the reset button, supports voice control through Alexa
• Mesh network, much longer control distance, transmits received signal to neighbor devices
• Up to 30m transmission distance between every two neighbor devices
• Encrypted two-way communication, quick status feedback, safe & reliable data transmission
• Compatible with universal RF+Bluetooth remotes, each LED controller can pair to max. 8 remotes
• Cloud control is available for remote access, works with Amazon Alexa and Google Home
• With push switch input, can be controlled by universal AC push switches
• Standard size, can be compatible with existing EU standard frames, and installed into standard size wall box
• Radio Frequency : 2.4GHz
• Waterproof grade: IP20
Specifications
| Part No. |
Input Voltage |
Output Current |
Output Power | Size(LxWxH) |
|---|---|---|---|---|
|
SR-SB2835RAC-S |
100-240VAC |
2.2A max |
max. 500W @ 230V |
83.8x83.8x47.1mm |
Product Dimension

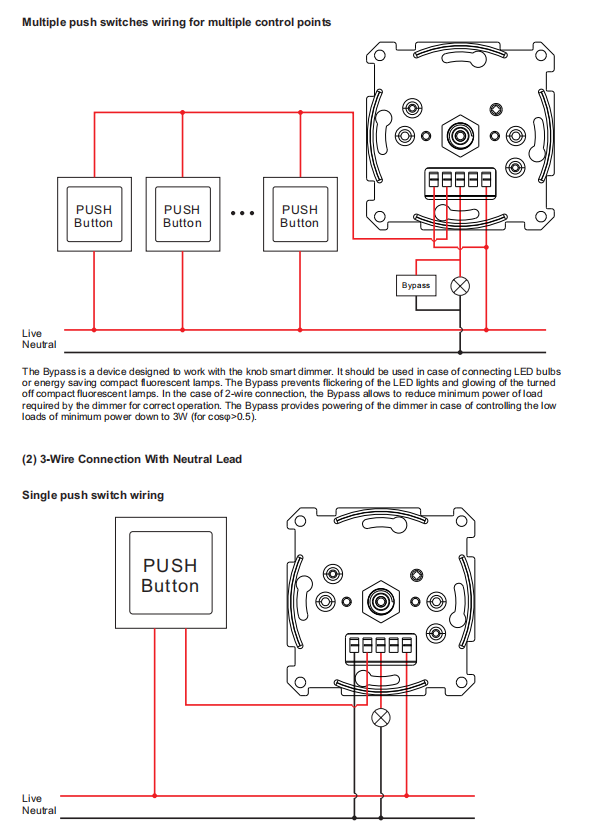

Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-SB2835RAC-S-Instruction.pdf
