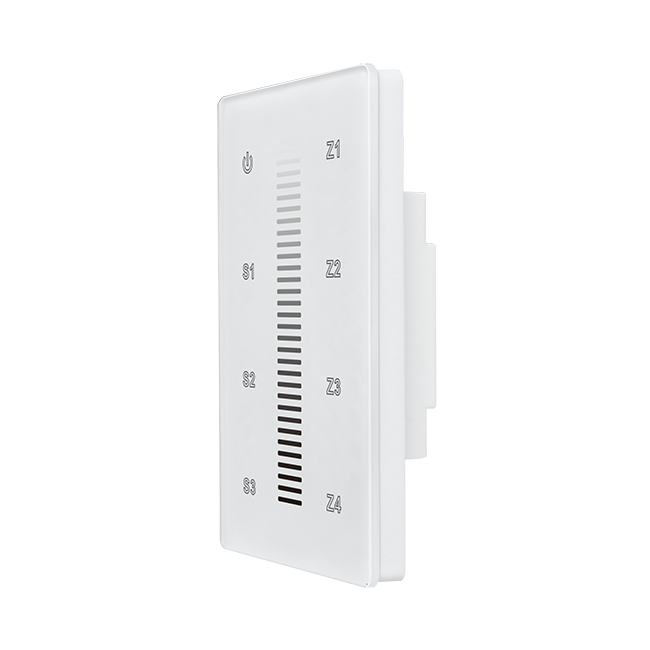

DALI Single Color Touch Controller SR-2300TS-DIM-US

This touch-sensitive glass DALI control panel features a built-in 100mA power supply, supporting up to 50 ECGs. It controls 4 light zones with switch/dimming, saves 3 scenes, and allows easy address setup via rotary switches. Powered by DALI bus or AC mains, it complies with IEC 62386 standards for reliable lighting control.

Key Features

• Touch sensitive.

• Glass interface (white & black).

• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.

• Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs

• Powered by DALI bus while not connected to AC mains

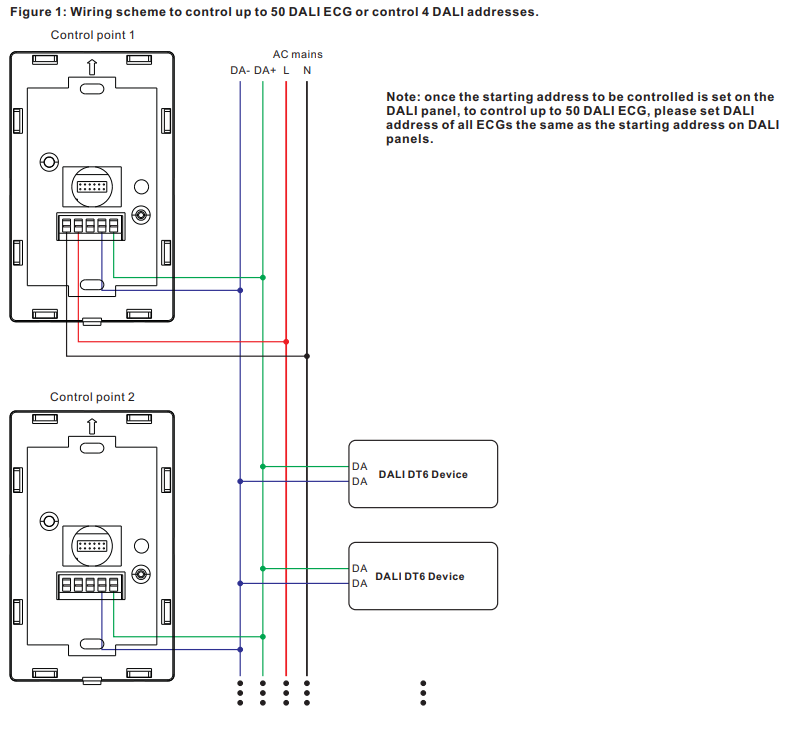

• Max. 100 DALI ECGs on a DALI line can be controlled by 4 control panels (2 by AC mains, 2 by DALI bus)

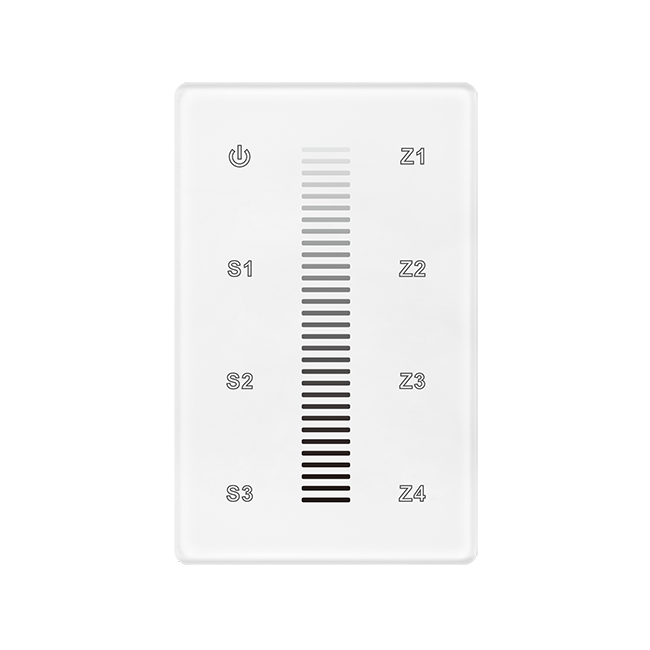

• 4 light zones are available for switch, dimming control, each zone can control 1 DALI address.

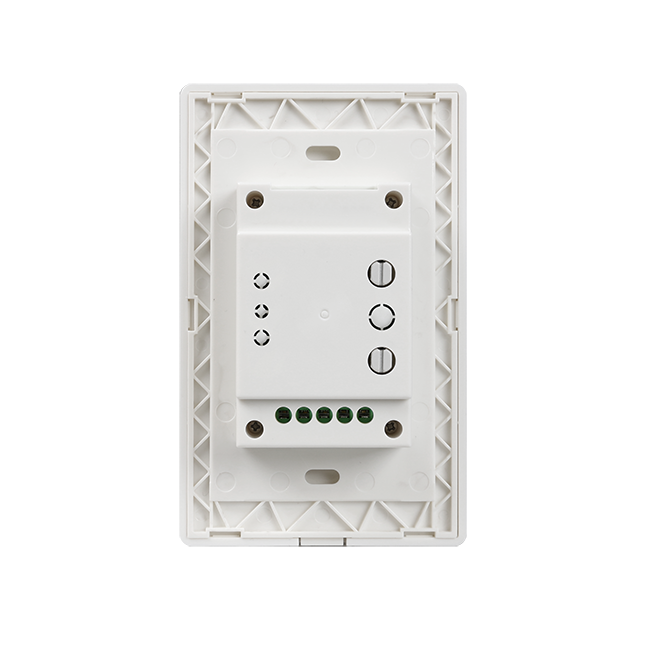

• Enable to set start DALI address number (0-63) for the 1 zone by rotary switches on the back.

• Enable to save 3 scenes
