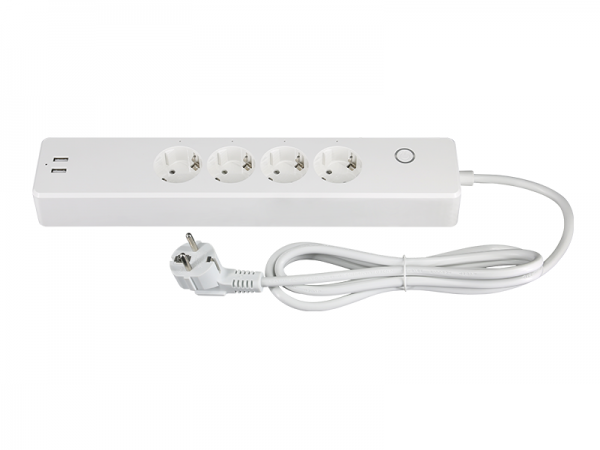

Zigbee Smart Outlet SR-ZG9023A-EU

Product Description

Based on latest ZigBee 3.0 protocol, this ZigBee smart outlet enables to control ON/OFF of the load, and supports max. 16 scenes. With 5 endpoints and 4 AC outputs and 2 USB ports, this ZigBee device supports Touchlink commissioning. And its 4 AC outputs can be controlled individually. With waterproof grade of IP20, its outlet supports find and bind mode to bind a ZigBee remote, supports zigbee green power and can bind max. 20 zigbee green power switches.

Key Features

• ZigBee smart outlet based on latest ZigBee 3.0 protocol

• Zigbee device with 5 endpoints, with 4 AC outputs and 2 USB ports

• The 4 AC outputs can be controlled individually

• Enables to control ON/OFF of the load, supports max. 16 scenes

• ZigBee device that supports Touchlink commissioning

• Supports find and bind mode to bind a ZigBee remote

• Supports zigbee green power and can bind max. 20 zigbee green power switches

• Waterproof grade: IP20

Specifications

Part No.	Number of AC Output	Input Voltage	Number of USB Port	Radio Frequency	Size (LWH)
SR-ZG9023A-EU	4	AC200-240V	2	2.4GHz	350×68×40(mm)

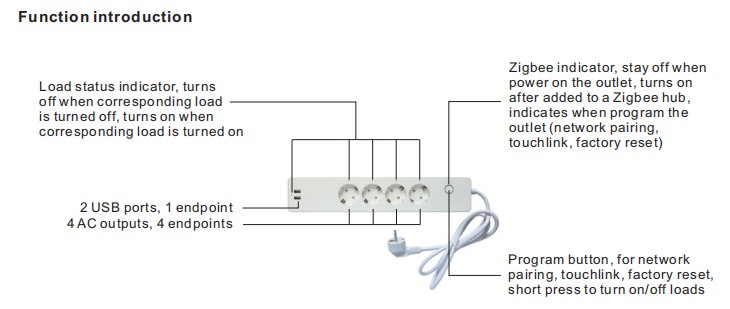

Function Introduction

Product Dimension

Coming soon

Download Center

To know further details of this product, please download the following user manual.

SR-ZG9023A-EU-Instruction.pdf
