- Zigbee Microwave Sensor SR-ZG9030A-MW
Product Description

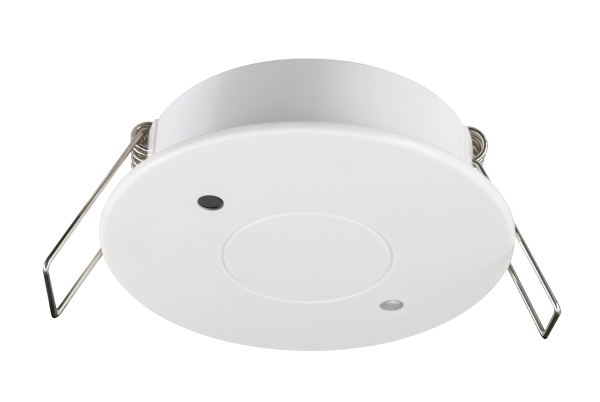

The occupancy sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits. When used with 0-10V LED drivers, it enables any lighting manufacturer to deliver wirelesslycontrollable and sensor-equipped fixtures. The sensor is suitable for high bay applications which need large detection area and sensor based automation.
Key Features
• Zigbee 3.0 compliant
• Microwave motion detection, dual antennas, long detection range
• Daylight harvesting
• Works with 0-10V dim-to-off LED drivers
• Autonomous sensor-based control
• OTA firmware upgrade
• Ceiling recessed installation
• Can be use for indoor applications
Specifications
Part No. |
Input Voltage
|
Radio Frequency |
Wireless Range
|
Detection Angle
|
Cutting Hole
|
---|---|---|---|---|---|
SR-ZG9030A-MW |
12/24 VDC
|
2.4GHz |
100 feet (30m) Line of Sight
|
150° (wall), 360° (ceiling)
|
70-73mm
|
Product Dimension
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9030A-MW User Manual.pdf
