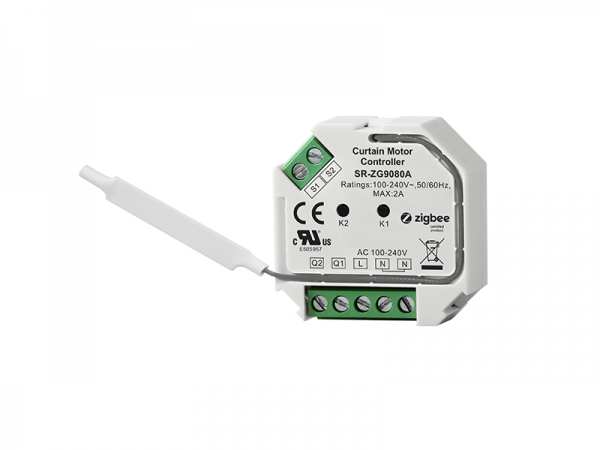

- Zigbee Curtain Motor Controller SR-ZG9080A
Product Description
Based on latest ZigBee 3.0 protocol, this Zigbee curtain motor controller supports various curtain types: roller blinds, shutter blinds, drapes, etc., and is controlled by smart app or directly by Zigbee remote. Even it is not added to a Zigbee network, it can control external switches locally. With accurate control, this controller supports both ON/OFF and level control. Besides, this ZigBee end device can support Touchlink commissioning, support self-forming Zigbee network without coordinator, support find and bind mode to bind a Zigbee remote, and support Zigbee green power feature and can bind max. 20 Zigbee green power remotes.
• Zigbee curtain motor controller based on latest ZigBee 3.0 protocol
• Full support for various curtain types: roller blinds, shutter blinds, drapes, etc.
• Controlled by smart app or directly by Zigbee remote
• Local control with external switches even if not added to a Zigbee network
• Accurate control, supports both ON/OFF and level control
• ZigBee end device that supports Touchlink commissioning
• Supports self-forming Zigbee network without coordinator
• Supports find and bind mode to bind a Zigbee remote
• Supports Zigbee green power feature and can bind max. 20 Zigbee green power remotes
• Compatible with universal ZigBee gateway products
• Waterproof grade: IP20
Specifications
Part No. |
Input Voltage |
Max. Load Current |
Operating |
Relative Humidity | Size (L*W*H) |
---|---|---|---|---|---|
SR-ZG9080A |
AC100-240V |
2A |
0 to 40°C |
8% to 80% | 45.5x45x20.3mm |
Wiring Diagram
Download Center
To know further details of this product, please download the following user manual.
SR-ZG9080A-Instruction.pdf
